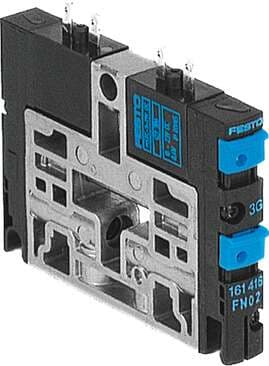

185880 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Operating pressure
  -0.9 bar ... 10 bar
• Nominal width
  4 mm
• Pilot pressure
  3 bar ... 8 bar
• On switching time
  15 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Valve function
  2x2/2 closed, monostable
• Standard nominal flow rate
  400 l/min
• Degree of protection
  IP65
• Exhaust air function
  Without flow control option
• Type of control
  Pilot-controlled
• C value
  1.6 l/sbar
• Max. positive test pulse with 0 signal
  1400 µs
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pneumatic connection 4
  M7
• Valve size
  10 mm
• Pneumatic working port
  M7
• Design
  Piston gate valve
• Sealing principle
  Soft
Pilot air supply port
External Internal
Flow direction
Non-reversible
Switching time off
17 ms
Max. negative test pulse on 1 signal
700 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pilot exhaust air port 82/84
Common port
Pneumatic port 3/5 combined
Common port
Type code
CPV10
Manual override
Detenting Non-detenting
b-value
0.35
Duty cycle
100% in combination with holding current reduction
Temperature of medium
-5 °C ... 50 °C
Pneumatic connection 1
Common port
Note on materials
RoHS-compliant
Actuation type
Electrical
Operating voltage
24V DC
Reset method
Pneumatic spring
Mounting position
Any
Symbol
00991801
Electrical power consumption
0.46 W
Product weight
70 g
Pilot air port 12/14
Common port
Pneumatic connection 11
Common port
Seals material
HNBR NBR
Storage temperature
-20 °C ... 40 °C
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 2
M7
Housing material
Die-cast aluminum Steel
