33296 Festo Pneumatic Components

33296 on Powermatic Associates
Festo

Part#:33296

Alt. Part#:DSRL-10-180-P-FW

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

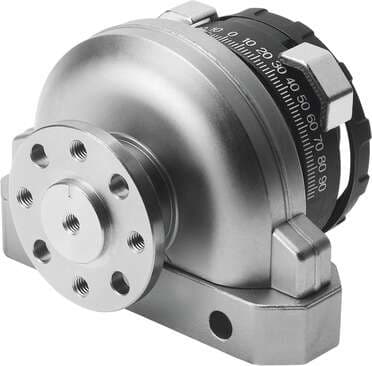

semi-rotary drive DSRL-10-180-P-FW Rotary vane principle, infinitely adjustable swivel angle. The stop system is separate from the rotary vane so that any forces which occur are absorbed by the stop cams and cushioned via flexible plastic pads. Size: 10,

Product Details

  • Swivel angle
    0 deg ... 180 deg
  • Position sensing
    None
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection
    M3
  • Size
    10
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Design
    Rotary vane
  • Ambient temperature
    -10 °C ... 60 °C
  • Drive shaft material
    Steel Nickel-plated
  • Cushioning angle
    2.4 deg
  • Mounting position
    Any
  • Symbol
    00991265
  • Theoretical torque at 6 bar
    0.5 Nm
  • Mode of operation
    Double-acting
  • Max. swivel frequency at 6 bar
    3 Hz
  • Type of mounting
    With through-hole
  • Adjustment range of swivel angle
    0 deg ... 180 deg
  • Type code
    DSRL
  • Operating pressure
    2.5 bar ... 8 bar
  • Product weight
    100 g
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
