33297 Festo Pneumatic Components

33297 on Powermatic Associates
Festo

Part#:33297

Alt. Part#:DSR-10-180-P

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

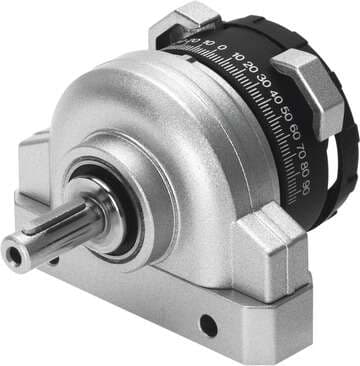

semi-rotary drive DSR-10-180-P Rotary vane principle, infinitely adjustable swivel angle. The stop system is separate from the rotary vane so that any forces which occur are absorbed by the stop cams and cushioned via flexible plastic pads. Size: 10, Cush

Product Details

  • Cushioning angle
    2.4 deg
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Design
    Rotary vane
  • Adjustment range of swivel angle
    0 deg ... 180 deg
  • Mode of operation
    Double-acting
  • Symbol
    00991265
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection
    M3
  • Position sensing
    None
  • Product weight
    100 g
  • Seals material
    NBR
  • Swivel angle
    0 deg ... 180 deg
  • Operating pressure
    2.5 bar ... 8 bar
  • Type of mounting
    With through-hole
  • Size
    10
  • Type code
    DSR
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Drive shaft material
    Steel Nickel-plated
  • Max. swivel frequency at 6 bar
    3 Hz
  • Theoretical torque at 6 bar
    0.5 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
