Powermatic Associates Logo

3434 Festo Pneumatic Components

3434 on Powermatic Associates
Festo

Part#:3434

Alt. Part#:VZA-3-1/4

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

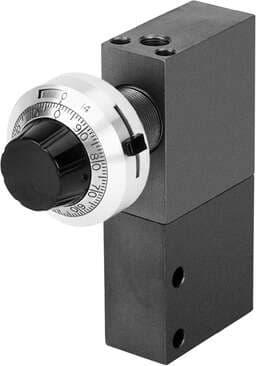

time delay valve VZA-3-1/4 Operating pressure: 0 - 10 bar, Standard nominal flow rate: 600 l/min, Adjustable delay times: 0 - 30 s, Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium: Lubricated

Product Details

  • Symbol
    00995725
  • Type code
    VZA
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Standard nominal flow rate
    600 l/min
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Type of mounting
    With through-hole
  • Pneumatic connection
    G1/8 G1/4
  • Operating pressure
    0 bar ... 10 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Adjustable delay time
    0 s ... 30 s
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

3434 Related Documents

3434 DataSheet.pdf

Similar products from: Festo Pneumatic Components

195495 on Powermatic Associates

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock
550481 on Powermatic Associates

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock
159596 on Powermatic Associates

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

1 in stock
1589339 on Powermatic Associates

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock
2950 on Powermatic Associates

2950

Festo

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, monostable, Type of actuation: mechanical, Standard nominal flow rate: 175 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

852 in stock
184318 on Powermatic Associates

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock

Manufacturer warranty

3434 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 3434 with other Pneumatic Components products

Symbol

Type code

Information on operating ...

Standard nominal flow rat...

Explosion prevention and ...

Type of mounting

Pneumatic connection

Operating pressure

Operating medium

Adjustable delay time

Selected product

3434
Backordered
3434
Festo

time delay valve VZA-3-1/4 Operating pressure: 0 - 10 bar, Standard nominal flow rate: 600 l/min, Ad...

Symbol00995725

Type codeVZA

Information on operating and pilot mediaOperation with oil lubricati...

Standard nominal flow rate600 l/min

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Type of mountingWith through-hole

Pneumatic connectionG1/8 G1/4

Operating pressure0 bar ... 10 bar

Operating mediumCompressed air as per ISO 85...

Adjustable delay time0 s ... 30 s
