34934 Festo Pneumatic Components
Part#:34934
Alt. Part#:MUH-ZP-D-3-24G
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

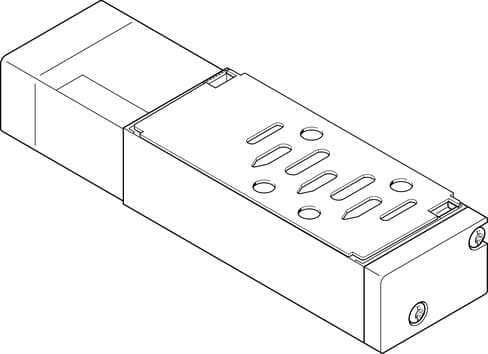

intermediate plate MUH-ZP-D-3-24G Nominal size: 14,5 mm, Grid dimension: 72 mm, Type of actuation: electrical, Assembly position: Any, Manual override: Pushing
Product Details
- Actuation type Electrical
- Operating pressure -0.9 bar ... 10 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Width dimension 72 mm
- Nominal operating voltage DC 24 V
- CE marking (see declaration of conformity) As per EU EMC directive
- Type of mounting With through-hole
- Type code MUH
- Pilot pressure 2 bar ... 10 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Degree of protection IP65
- Certification c UL us - Recognized (OL)
- Nominal width 14.5 mm
- Manual override Non-detenting
- Type of control Direct
- Flow direction Non-reversible
- Storage temperature -20 °C ... 40 °C
- Ambient temperature -5 °C ... 50 °C
- Seals material NBR
- Mounting position Any
- Reset method Mechanical spring
- Permissible voltage fluctuations +/- 10 %
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials RoHS-compliant
- Temperature of medium -5 °C ... 50 °C
- Product weight 500 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
