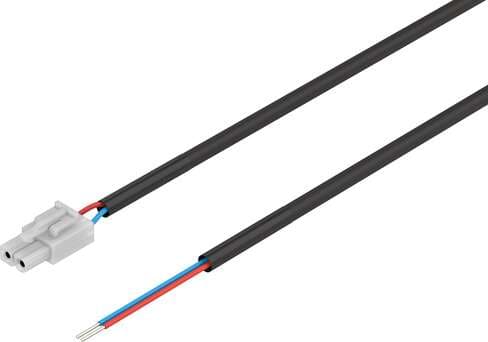

5219205 Festo Cable Assemblies

Product Details

• Electrical connection 1, occupied pins/wires
  2
• Electrical connection 2, connection type
  Cable
• Current rating at 40°C
  5 A
• Cable length
  2.5 m
• Wire ends
  Cable end sleeve
• Ambient temperature
  -40 °C ... 80 °C
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Material of cable sheath
  PVC
• Type code
  NEBM
• Electrical connection 1, connection technology
  Connection diagram H7, coded for motor brake
• Electrical connection 1, number of pins/wires
  2
• Electrical connection 2, number of pins/wires
  2
• Connector cable test conditions
  Test conditions on request
• Bending radius, fixed cable installation
  ≥ 27 mm
• Cable design
  2 x 0.51 mm²
• CE marking (see declaration of conformity)
  As per EU RoHS directive
• Housing colour
  White
• Nominal conductor cross section
  0.51 mm²
• Electrical connection 1, design
  Rectangular
• Electrical connection 2, connection technology
  Open end
Electrical connection 2, occupied pins/wires
2
Bending radius, flexible cable installation
≥ 55 mm
Ambient temperature with flexible cable installation
-10 °C ... 80 °C
Color cable sheath
Black
Electrical connection 1, function
Field device end
Electrical connection 1, cable outlet
Straight
Electrical connection for input 1, connection pattern
00995791
Operating voltage range AC
0 V ... 30 V
Cable characteristic
Suitable for energy chains
Degree of protection
IP20
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Insulating sheath material
PVC
Cable designation
Without label holder
Electrical connection 1, connection type
Socket
Electrical connection 2, function
Control side
DC operating voltage range
0 V ... 30 V
Surge resistance
2 kV
Cable diameter
5.1 mm
Note on degree of protection
In mounted state
Contamination level
3
Housing material
PA
