5251388 Festo Cable Assemblies

5251388 on Powermatic Associates
Festo

Part#:5251388

Alt. Part#:NEBM-M23G15-EH-2.5-Q10N-R3LEG14

Manufacturer:Festo

Category:Cable Assemblies

Product Lifecycle:Active

Product description

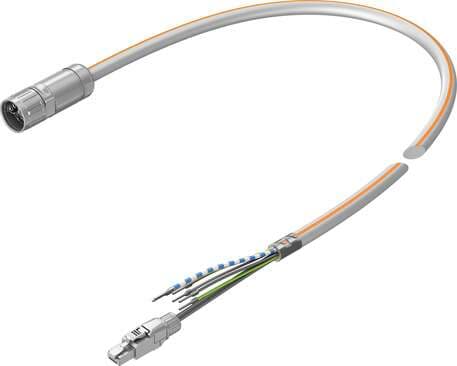

motor cable NEBM-M23G15-EH-2.5-Q10N-R3LEG14 Based on the standard: EN 61984, Cable identification: Without inscription label holder, Product weight: 1125 g, Electrical connection 1, function: Field device side, Electrical connection 1, design: Round

Product Details

  • Type code
    NEBM
  • Product weight
    1125 g
  • Electrical connection 1, connection technology
    M23x1
  • Electrical connection 2, connection type
    Plugs and cables
  • Electrical connection 2, function
    Control side
  • Cable length
    2.5 m
  • Cable diameter tolerance
    ± 0.3 mm
  • Wire ends
    Cable end sleeve
  • Nominal conductor cross section
    2.5 mm² 0.15 mm²
  • Material of cable sheath
    TPE-U(PUR)
  • Electrical connection 1, cable outlet
    Straight
  • Electrical connection for input 1, connection pattern
    00995912
  • Current rating at 40°C
    23.7 A
  • Cable characteristic
    Suitable for energy chains
  • Cable design
    4 x 2.5 mm² + 1 x (2 x 1.0 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²) Shielded
  • Ambient temperature
    -40 °C ... 90 °C
  • Note on materials
    RoHS-compliant Halogen-free
  • Insulating sheath material
    PP
  • Cable designation
    Without label holder
  • Electrical connection 1, design
    Round
  • Electrical connection 1, type of mounting
    Screw-type lock
  • Electrical connection 2, connection technology
    RJ45 and open end
  • Electrical connection 2, occupied pins/wires
    12
  • Cable diameter
    13.9 mm
  • Note on degree of protection
    In mounted state
  • Contamination level
    3
  • Based on norm
    EN 61984
  • Electrical connection 1, function
    Field device end
  • Electrical connection 1, number of pins/wires
    15
  • Electrical connection 2, cable outlet
    Straight
  • Electrical connection 2, number of pins/wires
    14
  • Bending radius, fixed cable installation
    ≥ 55.6 mm
  • Connector cable test conditions
    Test conditions on request
  • Degree of protection
    IP67
  • Ambient temperature with flexible cable installation
    -25 °C ... 80 °C
  • Color cable sheath
    Gray
  • Electrical connection 1, connection type
    Hybrid socket
  • Electrical connection 1, occupied pins/wires
    12
  • DC operating voltage range
    0 V ... 850 V
  • Operating voltage range AC
    0 V ... 630 V
  • Surge resistance
    6 kV
  • Bending radius, flexible cable installation
    ≥ 97.3 mm
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
