529817 Festo Compressed Air Preparation Units

529817 on Powermatic Associates
Festo

Part#:529817

Alt. Part#:MS6-DL-1/2

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

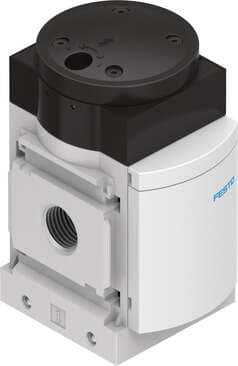

soft-start valve MS6-DL-1/2 Pneumatic, for gradual pressure build-up, direction of flow: from left to right. Exhaust-air function: throttleable, Type of actuation: pneumatic, Assembly position: Any, Manual override: None, Design structure: Piston seat

Product Details

  • For use in the food industry
    See supplementary material information
  • Mounting position
    Any
  • Pilot air supply port
    External
  • b-value
    0.39
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/2
  • Housing material
    Die-cast aluminum
  • Type code
    MS6-DL
  • Design
    Piston seat
  • Operating pressure
    4 bar ... 18 bar
  • Product weight
    650 g
  • Type of control
    Direct
  • Valve function
    2/2
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pneumatic connection 2
    G1/2
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Actuation type
    Pneumatic
  • Reset method
    Mechanical spring
  • Symbol
    00991513
  • Standard nominal flow rate
    6450 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Type of mounting
    Optionally: With accessories
  • Seals material
    NBR
  • Exhaust air function
    With flow control option
  • Manual override
    None
  • Flow direction
    Non-reversible
  • C value
    28.97 l/sbar
  • Ambient temperature
    -10 °C ... 60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

529817 Related Documents

529817 DataSheet.pdf
