529855 Festo Compressed Air Preparation Units

529855 on Powermatic Associates
Festo

Part#:529855

Alt. Part#:MS6-FRM-1/2-Y-Z

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

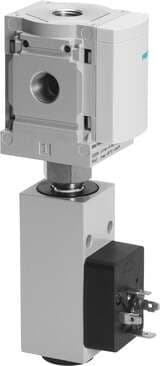

branching module MS6-FRM-1/2-Y-Z Includes pressure switch without indicator, direction of flow: from right to left. Assembly position: Any, Design structure: Branching module, Operating pressure: 0 - 12 bar, Standard nominal flow rate in main flow directi

Product Details

  • Type code
    MS6-FRM
  • Standard nominal flow rate outlet at top
    4400 l/min
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Ambient temperature
    -10 °C ... 60 °C
  • Pneumatic connection 1
    G1/2
  • Operating pressure
    0 bar ... 12 bar
  • Storage temperature
    -10 °C ... 60 °C
  • Pneumatic connection 3
    G1/2
  • Design
    Branching module
  • Symbol
    00995602
  • Standard nominal flow rate outlet down
    4600 l/min
  • Product weight
    736 g
  • Pneumatic connection 2
    G1/2
  • Note on materials
    RoHS-compliant
  • Mounting position
    Any
  • Standard nominal flow rate in main flow direction 1 -> 2
    14700 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 4
    G1/2
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • For use in the food industry
    See supplementary material information
  • Temperature of medium
    -10 °C ... 60 °C
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

529855 Related Documents

529855 DataSheet.pdf
