529823 Festo Compressed Air Preparation Units
Part#:529823
Alt. Part#:MS6-EE-1/2-V110
Manufacturer:Festo
Category:Compressed Air Preparation Units
Product Lifecycle:Active
Product description

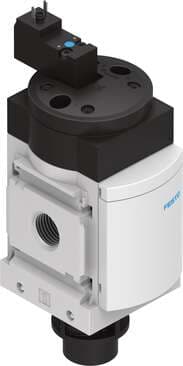

on-off valve MS6-EE-1/2-V110 Electrical, direction of flow: from left to right. Design structure: Piston slide, Type of actuation: electrical, Exhaust-air function: not throttleable, Manual override: (* detenting, * Pushing), Type of reset: mechanical spr
Product Details
- Type code MS6-EE
- Exhaust air function Without flow control option
- Symbol 00991008
- Operating pressure 4 bar ... 18 bar
- Actuation type Electrical
- Reset method Mechanical spring
- Valve function 3/2, closed, monostable
- Coil characteristics 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Permissible voltage fluctuations +/- 10 %
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 1 G1/2
- Seals material NBR
- C value 29 l/sbar
- Duty cycle 100%
- Note on materials Free of copper and PTFE RoHS-compliant
- Certification c UL us - Recognized (OL)
- Pneumatic connection 2 G1/2
- Housing material Die-cast aluminum
- Design Piston gate valve
- Type of control Pilot-controlled
- b-value 0.4
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Temperature of medium -10 °C ... 60 °C
- Flow direction Non-reversible
- Product weight 740 g
- Standard nominal flow rate 7000 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Mounting position Any
- Degree of protection IP65
- Type of mounting Optionally: With accessories
- Pilot air supply port Internal
- For use in the food industry See supplementary material information
- Manual override Detenting Non-detenting
- Electrical connection Form C Rectangular design
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 3 G1/2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
