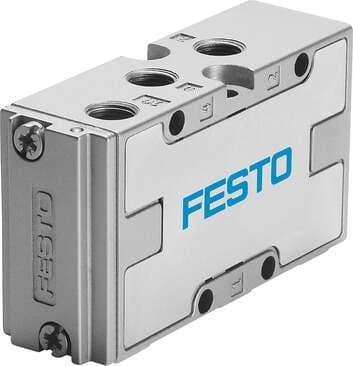

536008 Festo Directional Control Valves
Part#:536008
Alt. Part#:VL-5/2-D-2-C-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
pneumatic valve VL-5/2-D-2-C-EX 5/2-way function, pneumatically actuated, with spring return Valve function: 5/2 monostable, Type of actuation: pneumatic, Width: 54 mm, Standard nominal flow rate: 2300 l/min, Operating pressure: 2 - 16 bar
Product Details
- Type code VL
- Actuation type Pneumatic
- Pneumatic working port Sub-base, size 2 as per ISO 5599-1 G3/8
- Width dimension 56 mm
- ISO code 202
- Symbol 00991048
- ATEX category gas II 2G
- ATEX category for dust II 2D
- Width 54 mm
- Reset method Pneumatic spring
- Conforms to standard ISO 5599-1
- Switching time off 39 ms
- Explosive ambient temperature -10°C <= Ta <= +60°C
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pneumatic connection 1 Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 2 as per ISO 5599-1
- Valve function 5/2, monostable
- Standard nominal flow rate 2300 l/min
- Operating pressure 2 bar ... 16 bar
- Exhaust air function With flow control option
- Type of control Direct
- Pilot pressure 2 bar ... 16 bar
- Type of (ignition) protection for dust Ex h IIIC T130°C Db
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Ambient temperature -10 °C ... 60 °C
- Type of mounting On sub-base With through-hole and screw
- Nominal width 11.5 mm
- Mounting position Any
- Manual override None
- On switching time 23 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Noise level 85 dB(A)
- Pilot air port 14 Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 4 Sub-base, size 2 as per ISO 5599-1
- Note on materials RoHS-compliant
- Lap Overlap
- Design Piston gate valve
- Sealing principle Soft
- Flow direction Non-reversible
- Type of ignition protection for gas Ex h IIC T4 Gb
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 2 Sub-base, size 2 as per ISO 5599-1
- Housing material Die-cast aluminum
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -10 °C ... 60 °C
- Product weight 550 g
- Pneumatic connection 3 Sub-base, size 2 as per ISO 5599-1
- Seals material HNBR NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
