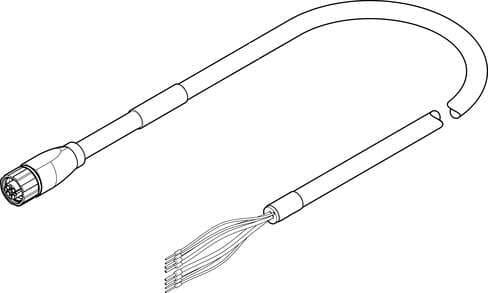

5391548 Festo Cable Assemblies

Product Details

• Product weight
  1300 g
• Electrical connection 1, occupied pins/wires
  6
• Electrical connection 2, connection technology
  Open end
• DC operating voltage range
  0 V ... 600 V
• Current rating at 40°C
  12 A
• Bending radius, fixed cable installation
  ≥ 55 mm
• Wire ends
  Cable end sleeve as per DIN 46228-A..-10 Cable end sleeve as per DIN 46228-E..-10
• Note on materials
  RoHS-compliant
• Color cable sheath
  Orange
• Based on norm
  EN 61984
• Electrical connection 1, design
  Round
• Electrical connection 1, function
  Field device end
• Electrical connection 2, function
  Control side
• Note on operating voltage range AC
  0 - 300 V for conductor cross-section of 0.25 mm²
• Cable length
  7.5 m
• Cable design
  4 x 0.75 mm² + 2 x (2 x 0.25 mm²) Shielded
• Ambient temperature with flexible cable installation
  -40 °C ... 90 °C
• Material of cable sheath
  TPE-U(PUR)
• Insulating sheath material
  TPE-E
• Type code
  NEBM
Electrical connection 1, connection type
Socket
Electrical connection 2, connection type
Cable
Electrical connection 2, occupied pins/wires
6
Note on surge resistance
4 kV for a conductor cross-section of 0.25 mm²
Surge resistance
6 kV
Degree of protection
IP65
Ambient temperature
-50 °C ... 90 °C
Electrical connection 1, connection technology
M16x0.75
Electrical connection 1, number of pins/wires
8
Note on operating voltage range DC
0 - 300 V for conductor cross-section of 0.25 mm²
Cable characteristic
Suitable for energy chains
Cable diameter
11 mm
Note on degree of protection
In mounted state
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Corrosion resistance class (CRC)
0 - No corrosion stress
Cable designation
Without label holder
Electrical connection 1, cable outlet
Straight
Electrical connection for input 1, connection pattern
00995654
Electrical connection 2, number of pins/wires
8
Operating voltage range AC
0 V ... 600 V
Note on acceptable current load at 40°C
4 A for conductor cross-section of 0.25 mm²
Bending radius, flexible cable installation
≥ 110 mm
Nominal conductor cross section
0.25 mm² 0.75 mm²
Contamination level
3
