548931 Festo Pneumatic Components
Part#:548931
Alt. Part#:CPX-CMPX-C-1-H1
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Product description

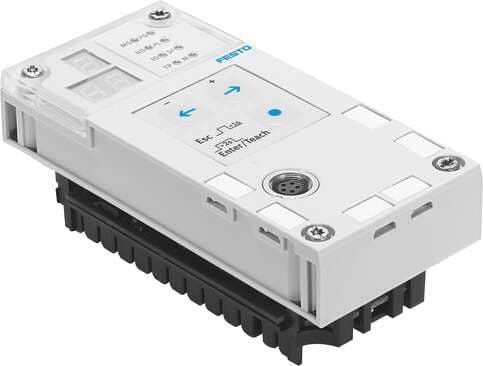

end-position controller CPX-CMPX-C-1-H1 for modular electrical terminal CPX. Dimensions W x L x H: 50 mm x 107 mm x 55 mm, Diagnosis: (* Module-oriented diagnostics, * Via local 7-segment display), Max. no. of modules: 10, Display: Seven-segment display,
Product Details
- Type code CPX
- Display Seven-segment display
- Nominal operating voltage DC 24 V
- Current consumption at nominal operating voltage 80 mA
- Vibration resistance to DIN/IEC 68 Part 2-6 Tested as per severity level 2
- No. of axis strings 1
- Dimensions W x L x H 50 mm x 107 mm x 55 mm
- Axes per string 1
- Cable length ≤ 30 m
- Diagnostics Module-orientated diagnostics Via local 7-segment display
- Control elements 3 pushbuttons
- Nominal voltage DC 24 V
- Permissible load current 2.5 A
- Ambient temperature -5 °C ... 50 °C
- Housing material PA-reinforced
- Max. number of modules 10
- DC operating voltage range 18 V ... 30 V
- Degree of protection IP65 as per IEC 60529
- Product weight 140 g
- Electrical connection, control interface Socket 5-pin
- Load voltage range DC 20 V ... 30 V
- Continuous shock resistance to DIN/IEC 68 Part 2-29 Tested as per severity level 2
- Relative air humidity 5 - 95 % Non-condensing
- Control interface Digital Terminating resistor integrated
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
