551402 Festo Proximity Sensors

551402 on Powermatic Associates
Festo

Part#:551402

Alt. Part#:SIES-8M-NO-24V-K-0,3-M8D

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

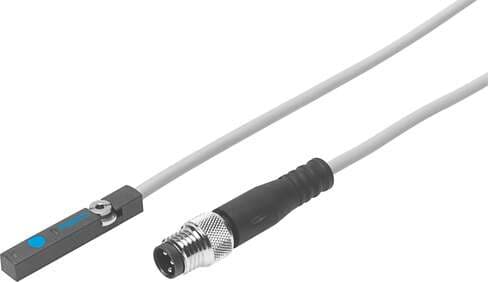

proximity sensor SIES-8M-NO-24V-K-0,3-M8D inductive, cable with plug, can be flush-mounted, N/C function Design: for T-slot, Conforms to standard: EN 60947-5-2, Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity):

Product Details

  • Cable length
    0.3 m
  • Switching status indication
    LED yellow
  • Insulation voltage
    50 V
  • Electrical connection 1, number of pins/wires
    3
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Rated operating distance
    1.5 mm
  • Max. output current
    150 mA
  • DC operating voltage range
    10 V ... 30 V
  • Conforms to standard
    EN 60947-5-2
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Switching output
    NPN
  • Idle current
    ≤ 10 mA
  • Connection outlet orientation
    Longitudinal
  • Connector cable test conditions
    Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
  • Housing material
    Brass, nickel-plated High-alloy stainless steel
  • Selection of additional sensor information
    For T-slot
  • Electrical connection 1, connection type
    Cable with plug
  • KC characters
    KC EMC
  • Symbol
    00991645
  • Reduction factors
    Aluminum = 0.62 Steel St 37 = 1.0
  • Switching element function
    N/C contact
  • Electrical connection
    3-pin Rotatable thread
  • Type of mounting
    Flush with T-slot Can be inserted in slot from above
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C
  • Contamination level
    3
  • Surge resistance
    0.8 kV
  • Type code
    SIES
  • Electrical connection for input 1, connection pattern
    00991155
  • Design
    for T-slot
  • Repetition accuracy under constant conditions
    <= 0.05 mm, approach from the side
  • Max. switching frequency
    4500 Hz
  • Material of cable sheath
    TPE-U(PU)
  • Degree of protection
    IP65 IP67
  • Electrical output
    NPN
  • Electrical connection 1, connection technology
    M8x1 A-coded as per EN 61076-2-104
  • Electrical connection 1, type of mounting
    Screw-type lock
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Ambient temperature
    -25 °C ... 70 °C
  • Short-circuit protection
    Pulsed
  • Reverse polarity protection
    for all electrical connections
  • Cable characteristic
    Standard + cable chain
  • Size
    Slot 8
  • Selection of sensor version
    Special design

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
