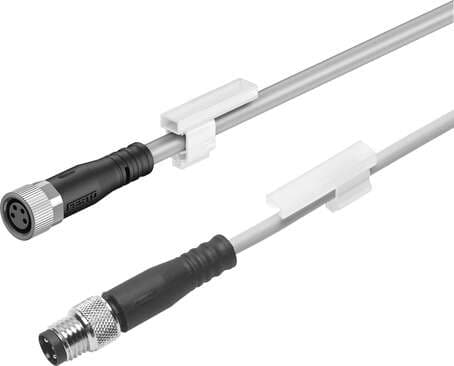

554035 Festo Cable Assemblies

Product Details

• Explosion prevention and protection
  Observe the information on the certificate Zone 22 (ATEX)
• Electrical connection 1, function
  Field device end
• Electrical connection 1, number of pins/wires
  4
• Electrical connection 2, design
  Round
• Electrical connection 2, connection pattern
  00991171
• Cable length
  2.5 m
• Note on degree of protection
  In mounted state
• Electrical connection for input 1, connection pattern
  00991872
• Electrical connection 2, cable outlet
  Straight
• DC operating voltage range
  0 V ... 30 V
• Connector cable test conditions
  Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
• Degree of protection
  IP65 IP69K
• Contamination level
  3
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Housing colour
  Black
• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
• Product weight
  76 g
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, number of pins/wires
  4
Surge resistance
0.8 kV
Bending radius, fixed cable installation
14 mm
Nominal conductor cross section
0.25 mm²
Ambient temperature
-25 °C ... 70 °C
CE marking (see declaration of conformity)
As per EU RoHS directive
Color cable sheath
Gray
Seals material
NBR
Type code
NEBU
Electrical connection 1, design
Round
Electrical connection 1, connection type
Socket
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 2, connection technology
M8x1 A-coded as per EN 61076-2-104
Electrical connection 2, type of mounting
Screw-type lock
Current rating at 40°C
3 A
Cable diameter
4.5 mm
Special features
Oil-resistant
Material of cable sheath
TPE-U(PUR)
Insulating sheath material
PP
Cable designation
With 2x label holders
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, occupied pins/wires
4
Electrical connection 2, function
Control side
Electrical connection 2, occupied pins/wires
4
Operating voltage range AC
0 V ... 30 V
Cable characteristic
Standard
Bending radius, flexible cable installation
46 mm
Cable diameter tolerance
± 0.1 mm
Cable design
4 x 0.25 mm²
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Housing material
TPE-U(PUR)
Material of pin contacts
Copper alloy, gold-plated
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Material of screw-type lock
Brass, nickel-plated
