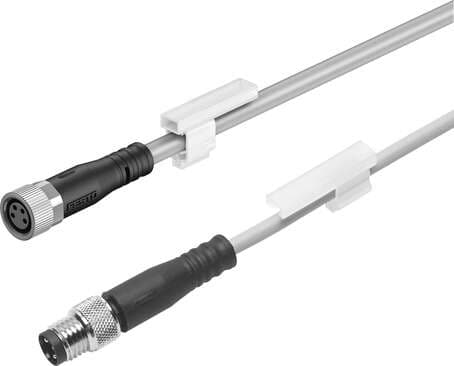

556946 Festo Cable Assemblies

Product Details

• Explosion prevention and protection
  Observe the information on the certificate Zone 22 (ATEX)
• Electrical connection 1, function
  Field device end
• Electrical connection for input 1, connection pattern
  00991872
• Electrical connection 2, type of mounting
  Screw-type lock
• Current rating at 40°C
  3 A
• Bending radius, flexible cable installation
  46 mm
• Nominal conductor cross section
  0.25 mm²
• Ambient temperature
  -25 °C ... 80 °C
• Contamination level
  3
• Housing colour
  Black
• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
• Electrical connection 1, connection type
  Socket
• Electrical connection 1, connection technology
  M8x1 A-coded as per EN 61076-2-104
• Electrical connection 2, design
  Round
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection 2, connection type
  Plug
• Operating voltage range AC
  0 V ... 30 V
• Type code
  NEBU
• Cable designation
  With 2x label holders
• Electrical connection 1, design
  Round
Electrical connection 1, occupied pins/wires
4
Electrical connection 2, function
Control side
Electrical connection 2, number of pins/wires
4
Electrical connection 2, occupied pins/wires
4
Connector cable test conditions
Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
Degree of protection
IP65 IP69K
Material of cable sheath
TPE-U(PUR)
Housing material
TPE-U(PUR)
Material of pin contacts
Copper alloy, gold-plated
Electrical connection 1, number of pins/wires
4
Electrical connection 2, cable outlet
Straight
Electrical connection 2, connection pattern
00991171
Surge resistance
0.8 kV
Cable diameter tolerance
± 0.1 mm
Special features
Oil-resistant
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Insulating sheath material
PP
Product weight
63 g
Electrical connection 1, cable outlet
Straight
Electrical connection 2, connection technology
M8x1 A-coded as per EN 61076-2-104
DC operating voltage range
0 V ... 30 V
Cable length
2 m
Cable characteristic
Suitable for robot applications
Cable diameter
4.5 mm
Cable design
4 x 0.25 mm²
CE marking (see declaration of conformity)
As per EU RoHS directive
Color cable sheath
Gray
Seals material
NBR
Bending radius, fixed cable installation
14 mm
Note on degree of protection
In mounted state
Ambient temperature with flexible cable installation
-5 °C ... 80 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Material of screw-type lock
Brass, nickel-plated
