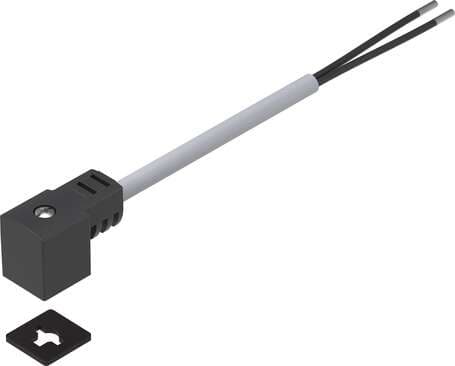

8032629 Festo Cable Assemblies

Product Details

• Electrical connection 1, connection technology
  Connection diagram type C as per EN 175301-803
• Electrical connection 1, type of mounting
  On air solenoid valve with M2.5 central screw
• Electrical connection 2, connection technology
  Open end
• Protective earth connection
  Available
• Product weight
  235 g
• Type code
  NEBV
• Electrical connection 1, function
  Field device end
• Electrical connection 1, cable outlet
  Angled
• Electrical connection 2, connection type
  Cable
• DC operating voltage range
  0 V ... 230 V
• Reverse polarity protection
  Bipolar
• Cable diameter
  5.2 mm
• Degree of protection
  IP65 IP67
• Ambient temperature
  -20 °C ... 70 °C
• Color cable sheath
  Gray
• Seals material
  HNBR
• Cable designation
  Without label holder
• Electrical connection 1, occupied pins/wires
  4
• Electrical connection 2, occupied pins/wires
  3
• Current rating at 40°C
  6 A
Cable characteristic
Standard
Note on degree of protection
In mounted state
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Housing colour
Black
Contact durability
50
Electrical connection 1, connection type
Socket, narrow
Electrical connection for input 1, connection pattern
00995798
Electrical connection 2, number of pins/wires
3
Surge resistance
4 kV
Cable length
5 m
Nominal conductor cross section
0.5 mm²
Note on materials
RoHS-compliant
Contamination level
3
Material of cable sheath
PVC
Material of pin contacts
Copper alloy, tin-plated
Electrical connection 1, information on cable outlet
Can be rotated through 180°
Electrical connection 1, design
Rectangular
Electrical connection 1, number of pins/wires
4
Electrical connection 2, function
Control side
Operating voltage range AC
0 V ... 230 V
Bending radius, flexible cable installation
≥ 52 mm
Cable diameter tolerance
± 0.1 mm
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Corrosion resistance class (CRC)
3 - High corrosion stress
Material of screws
Stainless steel
Connector cable test conditions
Test conditions on request
Cable design
3 x 0.5 mm²
Housing material
TPE-U(PU)
Insulating sheath material
PVC
