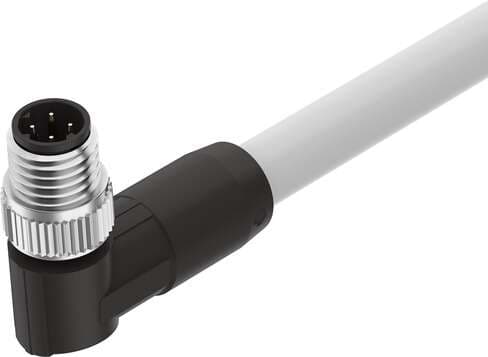

8065130 Festo Cable Assemblies

Product Details

• Based on norm
  EN 61076-2-114
• Electrical connection 1, connection type
  Plug
• Electrical connection 1, connection technology
  M8x1, D-coded as per EN 61076-2-114
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, design
  Round
• Type code
  NEBC
• Cable designation
  Without label holder
• Product weight
  306 g
• Electrical connection 1, design
  Round
• Electrical connection for input 1, connection pattern
  00995938
• Electrical connection 2, number of pins/wires
  4
• Electrical connection 2, occupied pins/wires
  4
• Current rating at 40°C
  3 A
• Cable diameter
  6.3 mm
• Cable design
  1 x (4 x AWG22)
• Storage temperature
  -40 °C ... 70 °C
• Color cable sheath
  Silver-grey with sky blue stripe
• Material of pin contacts
  Copper alloy, gold-plated
• Shield
  yes
• Electrical connection 1, cable outlet
  Angled
Electrical connection 1, type of mounting
Screw-type lock with longitudinal knurl
Electrical connection 2, type of mounting
Screw-type lock with longitudinal knurl
Surge resistance
1.5 kV
Cable diameter tolerance
± 0.2 mm
Ambient temperature with flexible cable installation
-5 °C ... 60 °C
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Housing colour
Black
Insulating sheath material
PP
Electrical connection 1, function
Control side
Electrical connection 1, occupied pins/wires
4
Electrical connection 2, cable outlet
Angled
DC operating voltage range
0 V ... 30 V
Connector cable test conditions
Test conditions on request
Special features
Oil-resistant
Contamination level
3
Material of screw-type lock
Brass, nickel-plated
Nominal conductor cross section
AWG22
Contact durability
100
Electrical connection 1, number of pins/wires
4
Electrical connection 2, function
Control side
Electrical connection 2, connection technology
M8x1, D-coded as per EN 61076-2-114
Electrical connection 2, connection pattern
00995938
Protective earth connection
Not available
Cable characteristic
Suitable for energy chains
Bending radius, fixed cable installation
≥ 20 mm
Bending radius, flexible cable installation
≥ 75 mm
Degree of protection
IP65 IP67
Ambient temperature
-20 °C ... 60 °C
Material of cable sheath
TPE-U(PUR)
Seals material
NBR
Transmission characteristics
as per system communication AP
Nominal operating voltage DC
24 V
Reverse polarity protection
no
Cable length
5 m
Note on degree of protection
In mounted state
Note on materials
RoHS-compliant Halogen-free
Housing material
PA TPE-U(PUR)
