8066669 Festo Cable Assemblies
Part#:8066669
Alt. Part#:NEBB-M8W4-P-10-LE4
Manufacturer:Festo
Category:Cable Assemblies
Product Lifecycle:Active
Product description

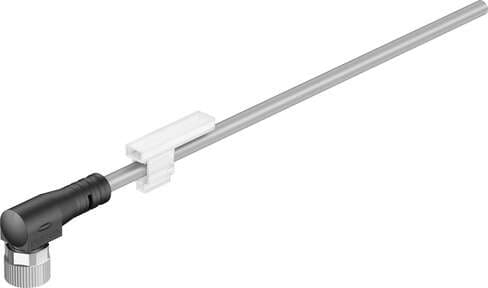

connecting cable NEBB-M8W4-P-10-LE4 Conforms to standard: (* Core colours and connection numbers to EN 60947-5-2, * EN 61076-2-104), Cable identification: With inscription label holder, Electrical connection 1, function: Field device side, Electrical conn
Product Details
- Cable designation With label holder
- Electrical connection 1, cable outlet Angled
- Electrical connection 1, connection technology M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, connection type Cable
- Electrical connection 2, number of pins/wires 4
- Cable characteristic for static applications
- Type code NEBB
- Electrical connection 1, function Field device end
- Electrical connection 1, number of pins/wires 4
- Operating voltage range AC 0 V ... 30 V
- Bending radius, fixed cable installation ≥ 14 mm
- Cable design 4 x 0.25 mm²
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Material of screw-type lock Brass, nickel-plated
- Explosion prevention and protection Observe the information on the certificate Zone 22 (ATEX)
- Electrical connection 1, connection type Socket
- Electrical connection 1, occupied pins/wires 4
- Electrical connection 2, function Control side
- Current rating at 40°C 4 A
- Connector cable test conditions Test conditions on request
- Note on degree of protection In mounted state
- Color cable sheath Gray
- Housing colour Black
- Material of pin contacts Copper alloy, gold-plated
- Conforms to standard Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
- Electrical connection 1, design Round
- Electrical connection 1, type of mounting Screw-type lock with AF 9
- Electrical connection 2, connection technology Open end
- DC operating voltage range 0 V ... 30 V
- Cable diameter 4.5 mm
- Degree of protection IP65 IP69K
- Note on materials Free of copper and PTFE RoHS-compliant
- Insulating sheath material PVC
- Electrical connection for input 1, connection pattern 00991872
- Electrical connection 2, occupied pins/wires 4
- Surge resistance 0.8 kV
- Cable length 10 m
- Wire ends Stripped Cut off bluntly
- Contamination level 3
- Housing material TPE-U(PU)
- Nominal conductor cross section 0.25 mm²
- Ambient temperature -25 °C ... 70 °C
- Material of cable sheath PVC
- Seals material NBR
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
