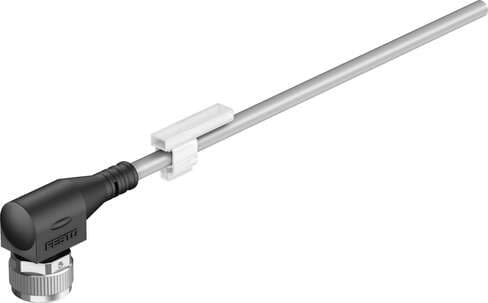

8066683 Festo Cable Assemblies

Product Details

• Conforms to standard
  Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-101
• Electrical connection 1, design
  Round
• Electrical connection 1, occupied pins/wires
  4
• Electrical connection 1, number of pins/wires
  5
• Electrical connection for input 1, connection pattern
  00991861
• Electrical connection 2, occupied pins/wires
  4
• Current rating at 40°C
  4 A
• Bending radius, fixed cable installation
  ≥ 14 mm
• Cable design
  4 x 0.25 mm²
• Note on degree of protection
  In mounted state
• Material of cable sheath
  PVC
• Insulating sheath material
  PVC
• Cable designation
  With label holder
• Electrical connection 1, connection type
  Socket
• Electrical connection 2, connection type
  Cable
• Cable length
  5 m
• Wire ends
  Stripped Cut off bluntly
• CE marking (see declaration of conformity)
  As per EU low voltage directive As per EU RoHS directive
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Material of pin contacts
  Copper alloy, gold-plated
Type code
NEBB
Electrical connection 1, function
Field device end
Electrical connection 1, cable outlet
Angled
Electrical connection 2, function
Control side
Surge resistance
2.5 kV
Cable diameter
4.5 mm
Note on materials
Free of copper and PTFE RoHS-compliant
Housing material
TPE-U(PU)
Seals material
NBR
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Electrical connection 1, connection technology
M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, type of mounting
Screw-type lock with AF 13
Electrical connection 2, connection technology
Open end
Operating voltage range AC
0 V ... 250 V
Connector cable test conditions
Test conditions on request
Nominal conductor cross section
0.25 mm²
Ambient temperature
-25 °C ... 70 °C
Color cable sheath
Gray
Housing colour
Black
Electrical connection 2, number of pins/wires
4
DC operating voltage range
0 V ... 250 V
Cable characteristic
for static applications
Degree of protection
IP65 IP69K
Contamination level
3
Material of screw-type lock
Brass, nickel-plated
