AB7956-F HMS Networks Industrial Automation Components
Part#:AB7956-F
Manufacturer:HMS Networks
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

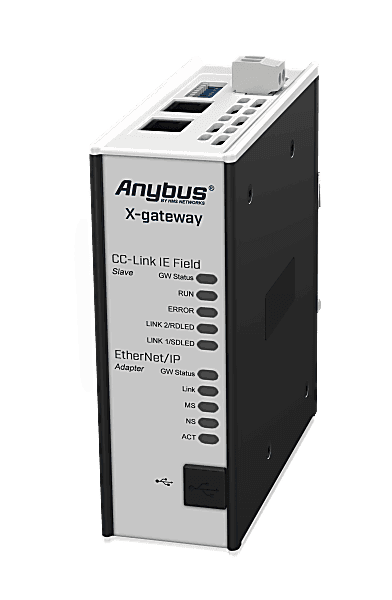

Anybus X-gateway – CC-Link IE Field Slave - EtherNet/IP Adapter
Product Details
- Customs Tariff Number 8517620090
- Primary brand eWON by HMS Networks
- Manufacturer description Anybus X-Gateways - Network 1 CC-Link IE Field Network Slave / Network 2 EtherNet/IP Adapter/Slave
- Reverse Polarity Protection Yes
- UL Yes
- Protection Class IP IP20
- HS Code 8517620000
- CC-Link IE Field Output Data Size 512 bytes
- Net Width (ERP) (mm) 44 mm
- Storage Temperature °C Max 85 °C
- Waste Certification (WEEE) Yes
- Dual Usage (ERP) No
- EtherNet/IP Supported Functionality EtherNet/IP Level 2 I/O Server CIP; Daisy Chainging; QoS; DNS
- Short Circuit Protection Yes
- Storage Temperature °C Min -40 °C
- UL File Number E214107: Ord.Loc UL508, CSA C22.2 NO. 142
- DIP & Rotary Switches 1x 8-dip switches for Station Number
- EtherNet/IP Mode Adapter / Slave
- Net Depth (ERP) (mm) 114 mm
- Net Height (ERP) (mm) 127 mm
- EMC Yes
- RoHS Compliant Yes
- CC-Link IE Field Input Data Size 512 bytes
- Input Voltage (V) 24V DC (-20% to +20%)
- Operating Temperature °C Min -25 °C
- FCC No
- Country of Origin Sweden
- EtherNet/IP Bandwidth 10/100MBit
- Isolation TRUE
- CE Yes
- Current Consumption Max value at Vcc nom (mA) 400mA @ 24V DC
- Packaging Material Cardboard
- Net Weight (ERP) (g) 400 g
- Current Consumption Type Value at Vcc Nom (mA) 200mA @ 24V DC
- Operating Temperature °C Max 65 °C
- WEEE Category IT and telecommunications equipment
- CC-Link IE Field Mode Slave
- Mounting DIN-rail (EN 50022 standard)
- Housing Materials Aluminum, Plastic
- Export Control Classification Number (ECCN) (ERP) 5A991.b.1
- EtherNet/IP Configuration File EDS available
- Power Connector 2-pin, 5.08 Phoenix plug connector
- Environment EN 61000-6-4, EN 55016-2-3 Class A, EN 55022 Class A, EN 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
- Contains Battery No
- EtherNet/IP Output Data Size 505 bytes
- Recycle / Disposal TRUE
- CC-Link IE Field Bandwith 1 Gbit/s fixed
- EtherNet/IP Input Data Size 509 bytes
- Connectors / Input / Output 2x RJ45, 2xRJ45, USB-B Config port
- CC-Link IE Field Supported Functionality CC-Link IE Field Network Intelligent Device Station
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Anybus by HMS Networks AB7956-F is a gateway within the X-gateway series designed for protocol translation. It features a CC-Link IE Field slave and EtherNet/IP adapter configuration, supporting installation in both vertical and flat orientations with galvanic isolation on both BUS and Ethernet sides. Configuration is managed via a USB port using the Anybus Configuration Manager software. The device includes 8 configuration switches, 8 IP configuration switches, and 10 LED indicators for fieldbus, sub-network, and device status monitoring. It operates on a supply voltage of 19.2-28.8Vdc (24Vdc nominal) and has dimensions of H127mm x W44mm x D114mm. The housing is made from aluminium and plastic, ensuring durability. Connection options include 2 x RJ45 CC-Link IE Field connectors, 2 x RJ45 LAN connectors for 10/100Mbit/s Ethernet/IP (supporting both full and half duplex), 1 x 2-poles 5.08mm plug-in screw connector for power, and 1 x USB connector for configuration. It offers an IP20 and NEMA 1 degree of protection and is designed for DIN rail mounting. The AB7956-F supports CC-Link and Ethernet/IP communication protocols, operates within an ambient air temperature range of -25 to +65°C, and consumes a maximum of 400mA (24Vdc) or typically 200mA. It is designed for storage in temperatures ranging from -40 to +85°C and can operate in environments with 5-95% relative humidity (non-condensing). The gateway facilitates speeds of 1Gbit/s for CC-Link IE Field and 10/100Mbit/s for Ethernet, catering to a variety of industrial automation needs.
