P4-10R-T Panduit Electronic Components
Part#:P4-10R-T
Manufacturer:Panduit
Category:Electronic Components
Product Lifecycle:Active
Aug 2, 2025
Product description

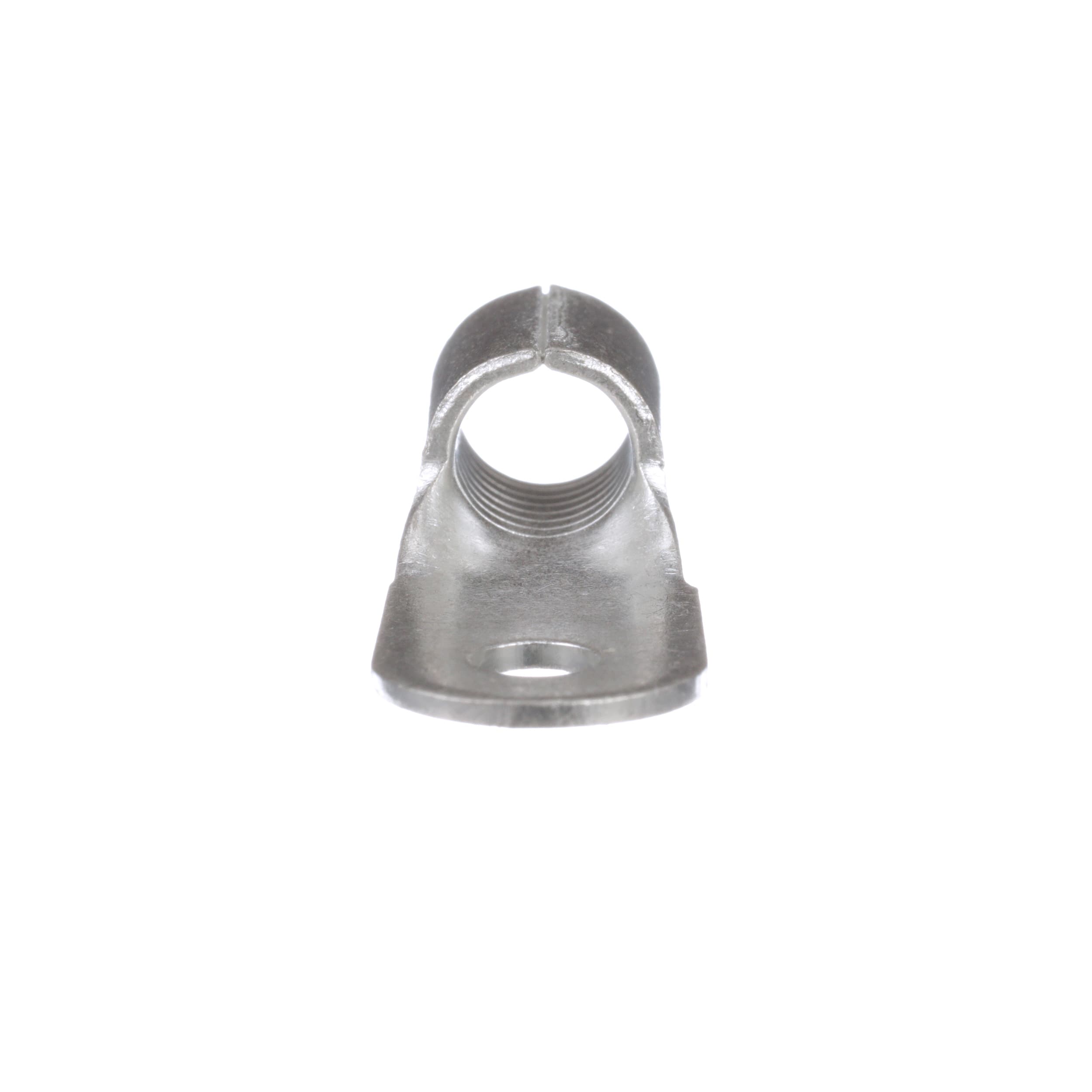

Pan-Term® Loose Piece Ring Terminal
Product Details
- Sub Brand Pan-Term®
- Maximum Voltage (kV) 2
- For Use With CT-1701, CT-2600 (CD-2600-P4)
- Maximum Wire Size (AWG) #4
- Maximum Operating Temperature (°F) 302
- Overall Width (In.) 0.55
- Wire Strip Length (In.) 1/2
- Outer Diameter (In.) 0.39
- Tongue Thickness (mm) 1.3
- Finish/Coating Tin-Plated
- Insulation Material Non-Insulated
- Overall Length (In.) 1.4
- Product Type Loose Piece Ring Terminal
- Minimum Wire Size (AWG) #4
- Barrel Type Standard
- Overall Length (mm) 35.6
- Maximum Operating Temperature (°C) 150
- Overall Width (mm) 14
- Wire Strip Length (mm) 12.7
- Seam Type Brazed
- Tongue Width (In.) 0.55
- Base Material Copper
- Tongue Thickness (In.) 0.05
- Inside Diameter (In.) 0.29
- Maximum Voltage (V) 2000
- Inside Diameter (mm) 7.4
- Tongue Width (mm) 14
- Standards Met UL 486A/B, and CSA 22.2 No.65
- Outer Diameter (mm) 9.9
- Packaging Type Box
- Part Features • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
