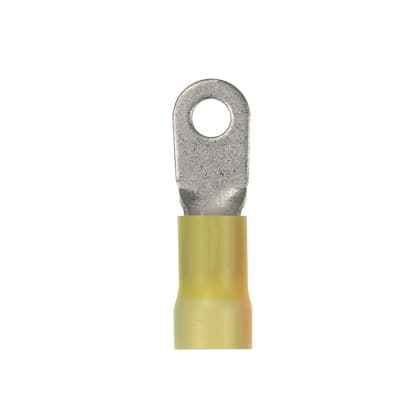

PV4-10R-T Panduit Electronic Components

Product Details

• Maximum Wire Size (AWG)
  #4
• Maximum Voltage (kV)
  0.6
• Insulation Diameter (In.)
  0.45
• Sub Brand
  Pan-term
• Overall Length (In.)
  1.88
• Insulation Material
  Vinyl
• Standards Met
  UL Listed 587H E52164
• Barrel Length (In.)
  0.8
• Outer Diameter (In.)
  0.45
• Overall Length (mm)
  47.8
• Tongue Width (mm)
  13.9
• Maximum Copper Conductor Size (AWG SOL)
  #4
• Maximum Voltage (V)
  600
• Flammability Rating
  UL 94 V-0
• Tongue Length (mm)
  27.4
• Tongue Width (In.)
  0.55
• Maximum Copper Conductor Size (AWG STR)
  #4
• Minimum Copper Conductor Size (AWG)
  #4
• Finish/Coating
  Tin-Plated
• Maximum Operating Temperature (°C)
  105
Tongue Thickness (In.)
0.05
Packaging Type
Box
Stud Hole Size (In.)
1/5
Minimum Wire Size (AWG)
#4
Wire Strip Length (mm)
12.7
Insulation Diameter (mm)
11.4
Maximum Wire Insulation Diameter (In.)
0.45
Minimum Copper Conductor Size (AWG SOL)
#4
Minimum Copper Conductor Size (AWG STR)
#4
Barrel Length (mm)
20.3
Outer Diameter (mm)
11.4
Tongue Thickness (mm)
1.3
Product Type
Ring Terminal
Stud Hole Size (mm)
5.1
Maximum Copper Conductor Size (AWG)
#4
Base Material
Copper
Color Code
Yellow
Maximum Wire Insulation Diameter (mm)
11.4
Overall Width (mm)
13.9
For Use With
CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV4)
Stud Size
#10
Wire Strip Length (In.)
0.50
Barrel Type
Funnel
Maximum Operating Temperature (°F)
221
Tongue Length (In.)
1.08
Overall Width (In.)
0.55
Part Features
• Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
