302MCE-N-ST-15 Red Lion Industrial Automation Components

302MCE-N-ST-15 on Powermatic Associates
Red Lion

Part#:302MCE-N-ST-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

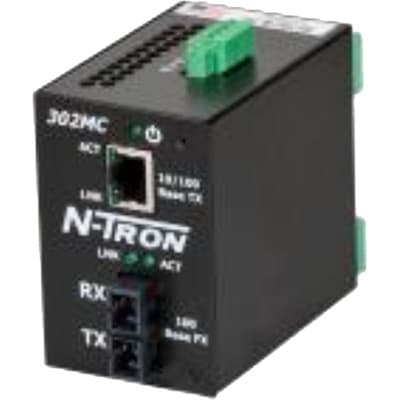

Red Lion 302MCE-N-ST-15 is a media converter designed for converting signals between copper and fiber optic media. It operates on a supply voltage range of 10-30Vdc, including standard 12Vdc and 24Vdc. This unit features a single RJ45 port supporting 10/100BaseTX and a fiber optic ST connector for single-mode fiber with a 100BaseFX rating, suitable for lengths up to 15km. It incorporates N-View monitoring for enhanced network visibility and is housed in a metal case suitable for DIN rail mounting. The device is designed to withstand ambient air temperatures for storage ranging from -40 to +70 degrees Celsius. It falls under the N-Tron 302MC series and is categorized with the UNSPSC code specific to its series and function.

Product Details

  • Main function
    Media converter
  • Mounting mode
    DIN rail
  • Functions
    Media converter
  • Material
    Metal case
  • Product series / family name
    Converters
  • Design
    N-View monitoring Copper / FO Fiber optic converter
  • Compliant with standard(s)
    CE
  • Secondary brand
    N-Tron
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Ambient air temperature for operation
    -40...+70 °C
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 302MC series
  • Connection type
    1 x RJ45 port (10/100BaseTX) 1 x Fiber optic ST connector (single-mode; 100BaseFX; 15km rated optical fiber)
  • Order code / Manufacturer SKU
    302MCE-N-ST-15
  • Equivalent to
    302MCENST15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
