Red Lion

Part#:306FXE2-N-ST-40

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 306FXE2-N-ST-40 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities. It features N-View Remote Monitoring Technology and supports a supply voltage of 10-30Vdc, including redundant power inputs of 12Vdc and 24Vdc. This model includes 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode with a 100BaseFX rated current and a 40km rated optical fiber length. It is designed to operate within an ambient air temperature range for storage of -40 to +70 degrees Celsius. The Ethernet switch is equipped with a metallic case, utilizes DIN rail technology for mounting, and is classified under the N-Tron 300-N series with a 6-ports configuration. The rated impulse voltage (Uimp) is specified for Ethernet, indicating its operational capacity and connectivity standard.

Product Details

  • Connection capacity
    6-ports
  • Mounting mode
    DIN rail
  • Order code / Manufacturer SKU
    306FXE2-N-ST-40
  • Product series / family name
    Ethernet switches
  • Sub-range name
    N-Tron 300-N series
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Main function
    Ethernet Switch
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 40km rated optical fiber)
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations
  • Benefits
    RJ-45 Ports Support Full/Half Duplex Operation LED Link/Activity status indication Auto Sensing Duplex / Speed and MDIX (RJ-45) Rugged industrial DIN rail enclosure
  • Secondary brand
    N-Tron
  • Functions
    Industrial process control monitored Ethernet switch N-View Remote Monitoring Technology
  • Ambient air temperature for operation
    -40...+70 °C
  • Equivalent to
    306FXE2NST40

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

306FXE2-N-ST-40 Related Documents

Red Lion - N-Tron 300 Series Unmanaged switches - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

CBLMAT02 on Powermatic Associates

CBLMAT02

Red Lion

Red Lion CBLMAT02 is a communication cable designed to connect Graphite, DSP, G3, and Modular Controller units to Matsushita FP0. It features a 5-pin male connector on one end and an RJ12 connector on the other, with a total length of 10 feet (3.05 meters). This cordset is specifically crafted for facilitating communication between the mentioned devices.

3 in stock
PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

1 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

16 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock

Manufacturer warranty

306FXE2-N-ST-40 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 306FXE2-N-ST-40 with other Industrial Automation Components products

Connection capacity

Mounting mode

Order code / Manufacturer...

Product series / family n...

Sub-range name

Primary brand

Supply voltage (DC)

Communication protocol

Material

Main function

Selected product

306FXE2-N-ST-40
Backordered
306FXE2-N-ST-40
Red Lion

Red Lion 306FXE2-N-ST-40 is an Ethernet switch designed for industrial process control with monitore...

Connection capacity6-ports

Mounting modeDIN rail

Order code / Manufacturer SKU306FXE2-N-ST-40

Product series / family nameEthernet switches

Sub-range nameN-Tron 300-N series

Primary brandRed Lion

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Communication protocolEthernet

MaterialMetallic case

Main functionEthernet Switch

104TX
2 in stock
104TX
Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a...

Connection capacity4-ports

Mounting modeDIN rail

Order code / Manufacturer SKU-

Product series / family nameEthernet switches

Sub-range nameN-Tron 100 series

Primary brandRed Lion

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Communication protocolEthernet

Material-

Main functionEthernet Switch

G07C0000
2 in stock
G07C0000
Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Connection capacity5 x module slots

Mounting mode-

Order code / Manufacturer SKU-

Product series / family nameHMIs (Human-Machine Interfac...

Sub-range nameHMI Rugged Graphite series

Primary brandRed Lion

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc)

Communication protocolRS-232 RS-422 RS-485 Etherne...

Material-

Main functionHMI / Display unit

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

Relevant products

306FX2-SC on Powermatic Associates

306FX2-SC

Verified stock: 0

Red Lion 306FX2-SC is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for multi-mode fiber with a 2km rated optical fiber length. The switch is designed to function within an ambient air temperature range for storage of -40 to +70 degrees Celsius. Encased in a metallic body for durability, it adheres to an IP20 rating for protection against objects larger than 12.5mm but not against water. It utilizes DIN rail technology for mounting, ensuring easy installation in various industrial settings. The 306FX2-SC, part of the N-Tron 300 series, is specified by the manufacturer as a 6-port Ethernet switch, coded under the UNSPSC as part of the N-Tron 300 series.

Red Lion

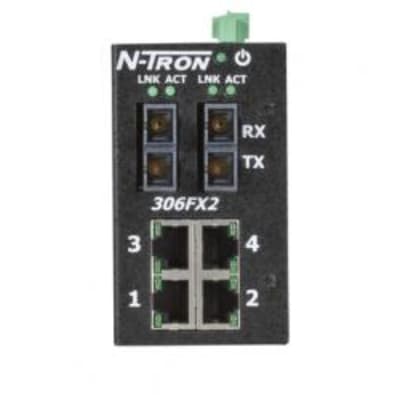

306FXE2-SC-40 on Powermatic Associates

306FXE2-SC-40

Verified stock: 0

Red Lion 306FXE2-SC-40 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fiber with a 40km rated optical length, suitable for extended network setups. The switch is designed to function within an ambient air temperature range for storage of -40 to +70 degrees Celsius. Encased in a metallic body for durability, it adheres to an IP20 rating for protection against objects larger than 12.5mm but not against water. It utilizes DIN rail mounting technology for easy installation. The 306FXE2-SC-40, part of the N-Tron 300 series, is specified with 6 ports and is identified by the UNSPSC code as an Ethernet switch.

Red Lion

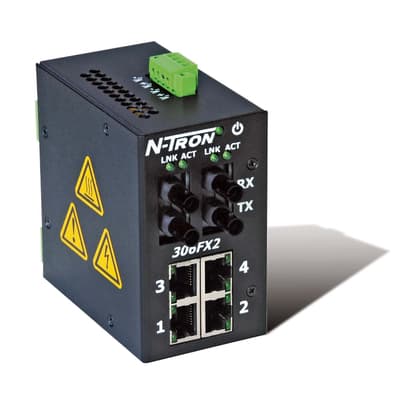

306FXE2-ST-40 on Powermatic Associates
