306FXE2-ST-80 Red Lion Industrial Automation Components

306FXE2-ST-80 on Powermatic Associates
Red Lion

Part#:306FXE2-ST-80

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

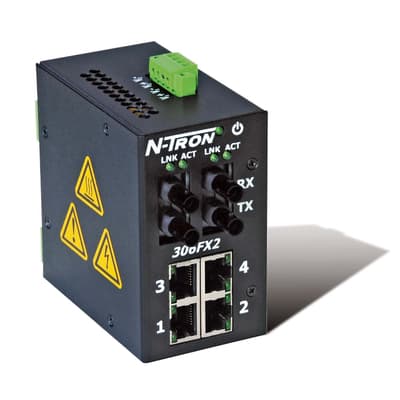

Red Lion 306FXE2-ST-80 is an industrial Ethernet switch designed for robust networking applications. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode fiber with a length rating of 80km, suitable for extended network connections. The switch is designed to function within an ambient air temperature range for storage of -40 to +70 degrees Celsius. Encased in a metallic body for durability, it adheres to an IP20 rating for protection against objects larger than 12.5mm but not against water. It utilizes DIN rail mounting technology for easy installation. The 306FXE2-ST-80, part of the N-Tron 300 series, is specified as a 6-port Ethernet switch, aligning with the UNSPSC code for Ethernet switches.

Product Details

  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Connection capacity
    6-ports
  • Material
    Metallic case
  • Benefits
    Compact Size / Small Footprint High Reliability/Availability Extended environmental specifications Ruggedized DIN rail enclosure High Performance High MTBF >2M Hours (measured) Plug-and-Play operation 6 Auto Sensing 10/100BaseTX RJ-45 Ports Auto Sensing D
  • Product series / family name
    Ethernet switches
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Degree of protection
    IP20
  • Order code / Manufacturer SKU
    306FXE2-ST-80
  • Secondary brand
    N-Tron
  • Functions
    Industrial Ethernet switch
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 300 series
  • Communication protocol
    Ethernet
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Ethernet Switch
  • Mounting mode
    DIN rail
  • Equivalent to
    306FXE2ST80

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

306FXE2-ST-80 Related Documents

Red Lion - Industrial Networking Product Guide.pdfRed Lion - N-Tron 300 Series Unmanaged switches - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

15 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
DA10D0C000000000 on Powermatic Associates

DA10D0C000000000

Red Lion

Red Lion DA10D0C000000000, part of the FlexEdge DA10D series, is a gateway designed for protocol conversion and data acquisition. It features a design that includes 1 x RS-232 (serial port), 1 x RS-232 / RS-485 (serial port), and 1 x Ethernet (RJ45; 10/100BaseTx) with an SD card slot for expanded functionality. The connection types available are 1 x RJ45 port (10/100BaseTX) for Ethernet connectivity, 1 x RJ12 port (RS-232 serial port), and 1 x RJ45 port (RS-232 / RS-485 serial port), supporting a range of communication protocols including RS-232, RS-485, and Ethernet. It operates on a supply voltage (DC) of 19.2-28.8Vdc, accommodating various industrial power supplies.

1 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock

Manufacturer warranty

306FXE2-ST-80 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 306FXE2-ST-80 with other Industrial Automation Components products

Supply voltage (DC)

Connection capacity

Material

Benefits

Product series / family n...

Connection type

Degree of protection

Order code / Manufacturer...

Secondary brand

Functions

Selected product

306FXE2-ST-80
Backordered
306FXE2-ST-80
Red Lion

Red Lion 306FXE2-ST-80 is an industrial Ethernet switch designed for robust networking applications....

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Connection capacity6-ports

MaterialMetallic case

BenefitsCompact Size / Small Footpri...

Product series / family nameEthernet switches

Connection type4 x RJ45 ports (10/100BaseTX...

Degree of protectionIP20

Order code / Manufacturer SKU306FXE2-ST-80

Secondary brandN-Tron

FunctionsIndustrial Ethernet switch

104TX
2 in stock
104TX
Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a...

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Connection capacity4-ports

Material-

Benefits-

Product series / family nameEthernet switches

Connection type4 x RJ45 ports (10/100BaseTX...

Degree of protectionIP30

Order code / Manufacturer SKU-

Secondary brandN-Tron

FunctionsIndustrial Ethernet switch

G07C0000
2 in stock
G07C0000
Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc)

Connection capacity5 x module slots

Material-

Benefits-

Product series / family nameHMIs (Human-Machine Interfac...

Connection type1 x RJ45 port (Ethernet) 2 x...

Degree of protectionIP66 NEMA 4X

Order code / Manufacturer SKU-

Secondary brand-

FunctionsHMI operator touchscreen pan...

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

EX-11B on Powermatic Associates

EX-11B

Panasonic

Panasonic EX-11B is a photo-electric sensor designed with a polyethylene terephthalate housing and a polyalylate lens. It features a current consumption of 10mA / 0.01 A for both the emitter and receiver, and offers a degree of protection rated at IP67. The sensor emits red light and is capable of detecting opaque objects as small as 1mm / 0.039". It includes an orange LED that lights up when the output is ON and a green LED that indicates a stable light received or stable dark condition. With a response time of 0.5ms / 0.0005 s and a single digital output (NPN open-collector / 24Vdc / 50mA), this sensor operates in a Dark-ON mode. It has a sensing distance of 0.15m / 150mm / 5.906" and includes protection functions such as outputs short-circuit protection. This ultra-slim photo-electric sensor emitter+receiver pair features front sensing and built-in amplification. It comes pre-wired with a 2m 3-core (2-core on emitter side) 0.1mm2 flexible cabtyre cable terminated with bare end flying leads. The sensor operates at a wavelength of 680 nm.

0 in stock

Relevant products

306FXE2-SC-40 on Powermatic Associates

306FXE2-SC-40

Verified stock: 0

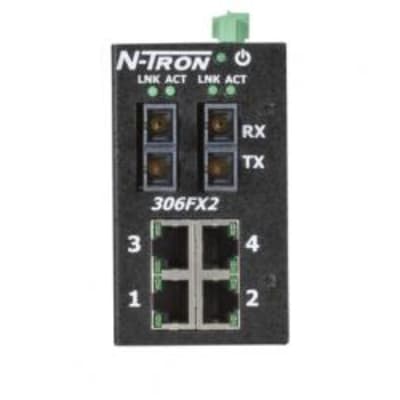

Red Lion 306FXE2-SC-40 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fiber with a 40km rated optical length, suitable for extended network setups. The switch is designed to function within an ambient air temperature range for storage of -40 to +70 degrees Celsius. Encased in a metallic body for durability, it adheres to an IP20 rating for protection against objects larger than 12.5mm but not against water. It utilizes DIN rail mounting technology for easy installation. The 306FXE2-SC-40, part of the N-Tron 300 series, is specified with 6 ports and is identified by the UNSPSC code as an Ethernet switch.
