306FXE2-ST-40 Red Lion Industrial Automation Components

306FXE2-ST-40 on Powermatic Associates
Red Lion

Part#:306FXE2-ST-40

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

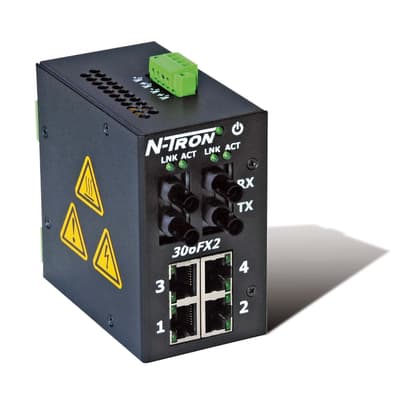

Red Lion 306FXE2-ST-40 is an industrial Ethernet switch designed for robust networking applications. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in critical systems. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode fiber with a 40km rated optical length, catering to extensive network setups. The switch is housed in a metallic case, ensuring durability, and is designed for DIN rail mounting, facilitating easy integration into existing setups. With an ambient air temperature range for storage from -40 to +70 degrees Celsius and an IP20 rating, it is suited for challenging industrial environments. The 306FXE2-ST-40 supports Ethernet speeds and includes technology that allows for efficient network management and expansion.

Product Details

  • Primary brand
    Red Lion
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 40km rated optical fiber)
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    306FXE2-ST-40
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Material
    Metallic case
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 300 series
  • Degree of protection
    IP20
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    Ethernet switches
  • Connection capacity
    6-ports
  • Mounting mode
    DIN rail
  • Equivalent to
    306FXE2ST40
  • Benefits
    Compact Size / Small Footprint High Reliability/Availability Extended environmental specifications Ruggedized DIN rail enclosure High Performance High MTBF >2M Hours (measured) Plug-and-Play operation 6 Auto Sensing 10/100BaseTX RJ-45 Ports Auto Sensing D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
