Powermatic Associates Logo

NT24K-12FXE4-ST-80-PT Red Lion Industrial Automation Components

NT24K-12FXE4-ST-80-PT on Powermatic Associates
Red Lion

Part#:NT24K-12FXE4-ST-80-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

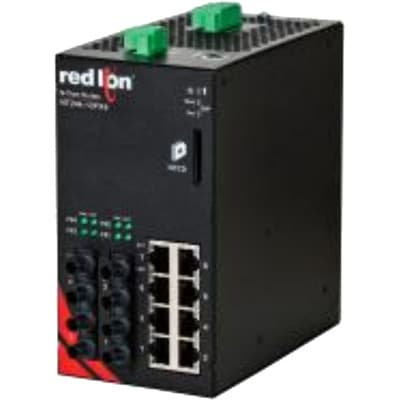

Red Lion NT24k-12FXE4-ST-80-PT is a Gigabit (GbE/GigE) industrial managed Ethernet switch that features SNMP v1, v2, v3, and Web Browser Management, SSH/SSL/HTTPS, IEEE 802.1x with RADIUS Remote Server Authentication, Multi-Member N-Ring Technology with 30ms Healing, N-Link Redundant Ring Technology, N-View Monitoring Technology, EtherNet/IP CIP Messaging, Web configuration, IGMP Auto Configuration, 802.1Q tag VLAN and Port VLAN, 802.1p QoS and Port QoS, SNTP, Event Log/Syslog, Port Trunking, and Port Mirroring. It supports 16k MAC addresses and is designed for DIN rail mounting. The operating ambient air temperature range is -40 to +85°C. This model, part of the N-Tron NT24k series, is designed with a PTP version and includes 8 x RJ45 ports (10/100/1000BaseTX) and 4 x ST fiber optic connectors (single-mode; 100BaseFX; 80km rated optical fiber) for connectivity. It operates on a supply voltage of 10-49Vdc (12Vdc / 24Vdc / 48Vdc) and is housed in a metallic case. The communication protocol is Ethernet, and it has a connection capacity of 12-ports. Protection functions include ESD + Surge protection on power inputs.

Product Details

  • Product series / family name
    Ethernet switches
  • Design
    PTP version
  • Primary brand
    Red Lion
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron NT24k series
  • Connection type
    8 x RJ45 ports (10/100/1000BaseTX) 4 x ST fiber optic connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Compliant with standard(s)
    CE IEEE 1588v2 EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Connection capacity
    12-ports
  • Ambient air temperature for operation
    -40...+85 °C
  • Main function
    Ethernet Switch
  • Supply voltage (DC)
    10-49Vdc (12Vdc / 24Vdc / 48Vdc)
  • Functions
    Gigabit (GbE/GigE) industrial managed Ethernet switch SNMP v1; v2; v3 and Web Browser Management SSH/SSL/HTTPS IEEE 802.1x with RADIUS Remote Server Authentication Multi-Member N-Ring Technology with 30ms Healing N-Link Redundant Ring Technology N-View Mo
  • Mounting mode
    DIN rail
  • Protection functions
    ESD + Surge protection on power inputs
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    NT24K-12FXE4-ST-80-PT
  • Material
    Metallic case
  • Equivalent to
    NT24k12FXE4ST80PT
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NT24K-12FXE4-ST-80-PT Related Documents

Red Lion - N-View OPC - Product Manual.pdfRed Lion - N-View 2 - Software Manual.pdfRed Lion - NT24k Ethernet switches - User Manual.pdfRed Lion - N-View OPC - Data Sheet.pdfRed Lion - NT24k Compact Series Hardware Manual.pdfRed Lion - NT24k Ethernet switches - CIP User Manual.pdfRed Lion - N-View 2 - Data Sheet.pdfRed Lion - NT24k Ethernet Switches - Hardware Manual.pdfRed Lion - NT24k Modular Rackmount Switches - Data Sheet.pdfRed Lion - NT24k Modular Rackmount Switches - Hardware Manual.pdf
