NT24K-14FXE6-ST-80 Red Lion Industrial Automation Components

NT24K-14FXE6-ST-80 on Powermatic Associates
Red Lion

Part#:NT24K-14FXE6-ST-80

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

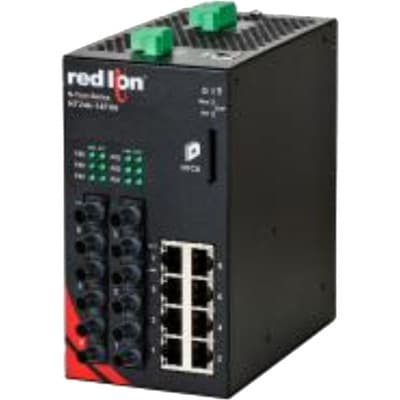

Red Lion NT24k-14FXE6-ST-80 is a Gigabit (GbE/GigE) industrial managed Ethernet switch designed for robust and secure network management in demanding environments. It features SNMP v1, v2, v3, and Web Browser Management for comprehensive control, alongside SSH/SSL/HTTPS for secure communication. The switch supports IEEE 802.1x with RADIUS for remote server authentication and incorporates advanced redundancy technologies such as Multi-Member N-Ring Technology with 30ms healing, N-Link Redundant Ring Technology, and N-View Monitoring Technology for enhanced network reliability. It is equipped with EtherNet/IP CIP Messaging, web configuration, IGMP Auto Configuration, 802.1Q tag VLAN and Port VLAN, 802.1p QoS and Port QoS, SNTP, Event Log/Syslog, Port Trunking, and Port Mirroring for versatile network management. The switch has a capacity for 16k MAC addresses and offers 8 x RJ45 ports (10/100/1000BaseTX) and 6 x ST fiber optic connectors (single-mode; 100BaseFX; 80km rated optical fiber) for diverse connectivity options. Designed for DIN rail mounting, it operates within an ambient air temperature range of -40 to +85°C and requires a supply voltage of 10-49Vdc (12Vdc / 24Vdc / 48Vdc). The metallic case ensures durability, and it features ESD + Surge protection on power inputs for additional security.

Product Details

  • Product series / family name
    Ethernet switches
  • Material
    Metallic case
  • Main function
    Ethernet Switch
  • Connection capacity
    14-ports
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron NT24k series
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-49Vdc (12Vdc / 24Vdc / 48Vdc)
  • Mounting mode
    DIN rail
  • Equivalent to
    NT24k14FXE6ST80
  • Functions
    Gigabit (GbE/GigE) industrial managed Ethernet switch SNMP v1; v2; v3 and Web Browser Management SSH/SSL/HTTPS IEEE 802.1x with RADIUS Remote Server Authentication Multi-Member N-Ring Technology with 30ms Healing N-Link Redundant Ring Technology N-View Mo
  • Connection type
    8 x RJ45 ports (10/100/1000BaseTX) 6 x ST fiber optic connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Order code / Manufacturer SKU
    NT24K-14FXE6-ST-80
  • Communication protocol
    Ethernet
  • Protection functions
    ESD + Surge protection on power inputs
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Ambient air temperature for operation
    -40...+85 °C
  • Compliant with standard(s)
    CE EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
