NT24K-16M12-POE-R-PT Red Lion Industrial Automation Components

NT24K-16M12-POE-R-PT on Powermatic Associates
Red Lion

Part#:NT24K-16M12-POE-R-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

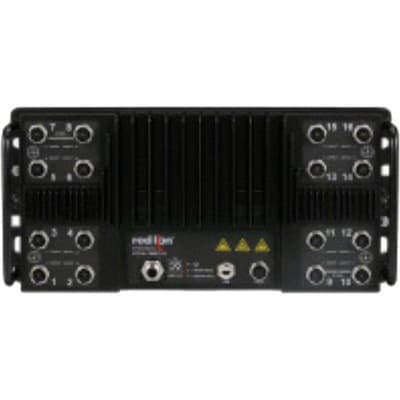

Red Lion NT24k-16M12-POE-R-PT is a Gigabit (GbE/GigE) industrial managed Ethernet switch designed for robust and high-speed network management. It features 16 x 4-pin M12 connectors (X-coded) for 10/100/1000BaseTX connections, supporting an ambient air temperature range of -40 to +85°C. This model is part of the N-Tron NT24k PoE series and offers a degree of protection rated at IP67, making it suitable for demanding environments. The switch is equipped with a metallic case and requires a supply voltage of 10-49Vdc (12Vdc / 24Vdc / 48Vdc). It supports Jumbo Frame, SNMP v1, v2, v3, SSH/SSL/HTTPS for secure web browser management, and features detailed ring map and fault location charting for efficient network troubleshooting. The NT24k-16M12-POE-R-PT supports 802.1d, 802.1w, 802.1D RSTP, port trunking and mirroring, 802.1Q tag VLAN and Port VLAN, 802.1x with RADIUS remote server authentication, and 802.1p QoS, including Port QoS and DSCP. It also features DHCP Client, Event Log/Syslog, SNTP (Simple Network Time Protocol), multi-member N-Ring technology with 30ms healing, N-Link redundant ring technology, N-View monitoring, and firmware management technology, EtherNet/IP CIP messaging, web configuration, and IGMP auto configuration. The design includes a built-in bypass relay (rly. PTP version) and is intended for surface bulkhead mounting.

Product Details

  • Main function
    Ethernet Switch
  • Design
    built-in bypass rly. PTP version
  • Communication protocol
    Ethernet
  • Degree of protection
    IP67
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron NT24k PoE series
  • Connection type
    16 x 4-pin M12 connectors (X-coded) (10/100/1000BaseTX)
  • Equivalent to
    NT24k16M12POERPT
  • Compliant with standard(s)
    CE IEEE 1588v2 EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Functions
    Gigabit (GbE/GigE) industrial managed Ethernet switch Jumbo Frame Support SNMP v1; v2; v3 SSH/SSL/HTTPS Web Browser Management Detailed Ring Map and Fault Location Charting 802.1d; 802.1w; 802.1D RSTP Port Trunking and Mirroring 802.1Q tag VLAN and Port V
  • Ambient air temperature for operation
    -40...+85 °C
  • Material
    Metallic case
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-49Vdc (12Vdc / 24Vdc / 48Vdc)
  • Order code / Manufacturer SKU
    NT24K-16M12-POE-R-PT
  • Primary brand
    Red Lion
  • Connection capacity
    16-ports
  • Mounting mode
    Surface Bulkhead

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
