NT24K-AC1-PT Red Lion Industrial Automation Components

NT24K-AC1-PT on Powermatic Associates
Red Lion

Part#:NT24K-AC1-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

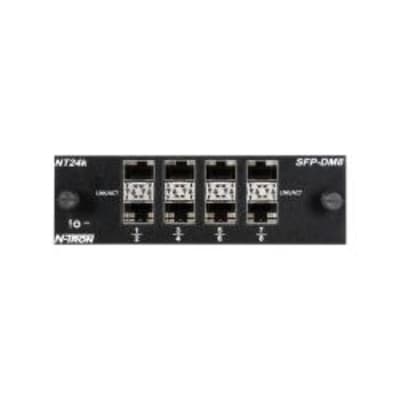

Red Lion NT24K-AC1-PT is an all-Gigabit (GbE/GigE) modular industrial managed Ethernet switch designed for rackmount installation, specifically fitting a 19" rack at 1U height. It operates within an ambient air temperature range of -40 to +85°C and features a metallic case. This model includes 1 power input PTP version and supports a connection capacity with 3 slots for port modules. It accommodates a wide range of supply voltages, accepting AC input from 90 to 264Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, as well as DC input from 90 to 300Vdc, covering 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The NT24K-AC1-PT, part of the N-Tron NT24k series, utilizes Ethernet as its communication protocol.

Product Details

  • Supply voltage (DC)
    90-300Vdc (100Vdc / 110Vdc / 120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc)
  • Connection capacity
    3-slots
  • Order code / Manufacturer SKU
    NT24K-AC1-PT
  • Secondary brand
    N-Tron
  • Supply voltage (AC)
    90-264Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Product series / family name
    Ethernet switches
  • Design
    1 x pwr. input PTP version
  • Material
    Metallic case
  • Main function
    Ethernet Switch
  • Sub-range name
    N-Tron NT24k series
  • Mounting mode
    Rackmount (19"; 1U)
  • Equivalent to
    NT24KAC1PT
  • Primary brand
    Red Lion
  • Functions
    All-Gigabit (GbE/GigE) modular industrial managed Ethernet switch
  • Connection type
    3 x port modules
  • Ambient air temperature for operation
    -40...+85 °C
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
