Part#:PAXT0100

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

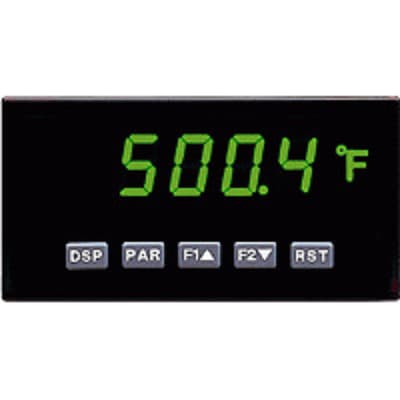

Red Lion PAXT0100 is a universal digital temperature meter part of the PAX series, designed with a 1/8 DIN horizontal configuration measuring 96mm in width and 48mm in height (3.80" x 1.95"). It features a display with 14.2mm green digits and has communication capabilities. This thermometer offers a degree of protection rated at IP65 NEMA 4X, ensuring its suitability for various industrial environments. It operates on a supply voltage of 11-36Vdc, accommodating both 12Vdc and 24Vdc systems. The PAXT0100 boasts a 20Hz analog input sampling rate and includes one analog input supporting a range of signals including 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with three digital inputs (Sink/Source) for user input and one analog output for retransmission purposes.

Product Details

  • Product series / family name
    Process indicators
  • Display
    1 row x 6-digits green characters (14.2mm / 0.56" high) LED display
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; C / Pt100 / Ni120 RTDs DC; 16-bits conversion; 0.12%...0.7% accuracy)
  • Frequency
    20Hz analog input sampling rate
  • Sub-range name
    PAX series
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Degree of protection
    IP65 NEMA 4X
  • Benefits
    Process / voltage / current / temperature / strain gage inputs Variable intensity display 16 point scaling for non-linear processes Programmable function keys/user inputs 9-digits totalizer (integrator) with batching Optional custom units overlay with bac
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")
  • Main function
    Thermometer (Digital)
  • Design
    3 user inputs 1/8 DIN horizontal (96x48mm) 14.2mm green digits communication capability
  • Functions
    Universal digital temperature meter
  • Analog outputs
    1 x analog output (retransmission)
  • Order code / Manufacturer SKU
    PAXT0100
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
