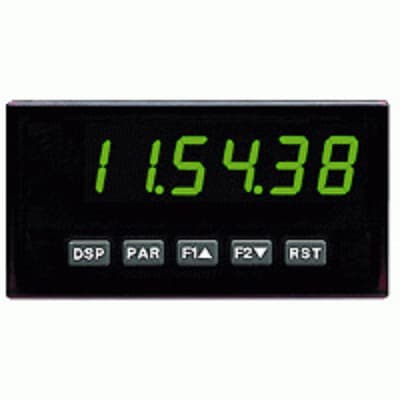

PAXTM110 Red Lion Industrial Automation Components

PAXTM110 on Powermatic Associates
Red Lion

Part#:PAXTM110

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PAXTM110 is a tool designed for use with PAX USB Programming cards. This specific part facilitates the programming and configuration of compatible devices via a USB interface, allowing for streamlined setup and customization.

Product Details

  • Display
    1 row x 6-digits green characters (14.2mm / 0.56" high) LED display
  • Sub-range name
    PAX series
  • Degree of protection
    IP65 NEMA 4X
  • Order code / Manufacturer SKU
    PAXTM110
  • Main function
    Timer (Digital)
  • Design
    1/8 DIN (96x48mm) 14.2mm green digits communication capability
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    11-36Vdc (12Vdc / 24Vdc)
  • Functions
    Digital timer
  • Product series / family name
    Process timers
  • Digital inputs
    3 x digital inputs (Sink/Source) (USER INPUT)
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Dimensions
    1/8 DIN horizontal (W96mm x H48mm / 3.80" x 1.95")

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PAXTM110 Related Documents

Red Lion - PAXCKTM - Product Manual.pdf
