8501KPDR12V56 Schneider Electric Industrial Automation Components

8501KPDR12V56 on Powermatic Associates
Schneider Electric

Part#:8501KPDR12V56

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

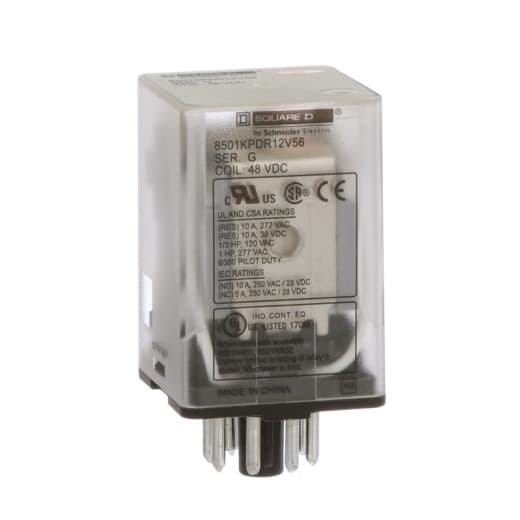

Schneider Electric - 8501KPDR12V56

Product Details

  • Contact Composition
    DPDT
  • Pilot Light
    No indicator
  • Relay Type
    General purpose
  • [Uc] Control Circuit Voltage
    48 V DC
  • Product Type
    Relay
  • Mounting Type
    Socket
  • Shape Of Pins
    Tubular
  • Product Range
    8501K
  • Manual Operator
    Without test button
  • Contact Material
    Silver alloy (AgNi)
  • Operating Time
    20 ms - pick-up 20 ms - drop-out
  • Maximum Switching Voltage
    300 V AC 30 V DC
  • For Use With
    8501NR52 8501NR51
  • Horsepower Rating
    1 hp 277 V AC 0.33 hp 120 V AC
  • Breaking Capacity
    3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 10 A 30 V DC resistive control circuit UL 508

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8501KPDR12V56 on Powermatic Associates is $47.58. Order now.
