8536SAG12V06H30 Schneider Electric Industrial Automation Components

8536SAG12V06H30 on Powermatic Associates
Schneider Electric

Part#:8536SAG12V06H30

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

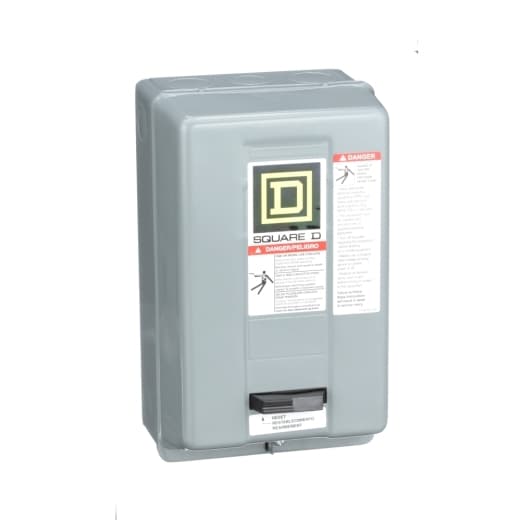

Schneider Electric - 8536SAG12V06H30

Product Details

  • SCCR
    Circuit-breaker 70 A maximum: 100 kA at 480 V AC Fuse J 60 A maximum: 100 kA at 600 V AC Fuse T 60 A maximum: 100 kA at 600 V AC Fuse RK1 60 A maximum: 100 kA at 600 V AC Fuse RK5 60 A maximum: 100 kA at 600 V AC
  • Horsepower Rating
    1.5 HP 200 V AC 1.5 HP 230 V AC 2 HP 460 V AC 2 HP 575 V AC
  • Coil Voltage
    440 V AC 50 Hz 480 V AC 60 Hz
  • Depth
    5.56 in (141.22 mm)
  • Width
    6.00 in (152.40 mm)
  • Control Circuit Type
    Common control circuit
  • Height
    10.00 in (254.00 mm)
  • Control Units
    No control units
  • Terminal Type
    Screw clamp terminals
  • Auxiliary Contacts
    Without
  • Maximum Voltage Rating
    600 V AC
  • Pilot Light
    Without pilot light
  • NEMA Size
    00
  • Rated Current
    9 A
  • Product Type
    Motor starter
  • Product Range
    S
  • Type Of Overload
    Solid state Motor Logic class 10/20
  • Phase
    3 phase
  • Starter Type
    Non reversing
  • Number Of Poles
    3P

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
