9001KR3RH6 Schneider Electric Industrial Automation Components

9001KR3RH6 on Powermatic Associates
Schneider Electric

Part#:9001KR3RH6

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

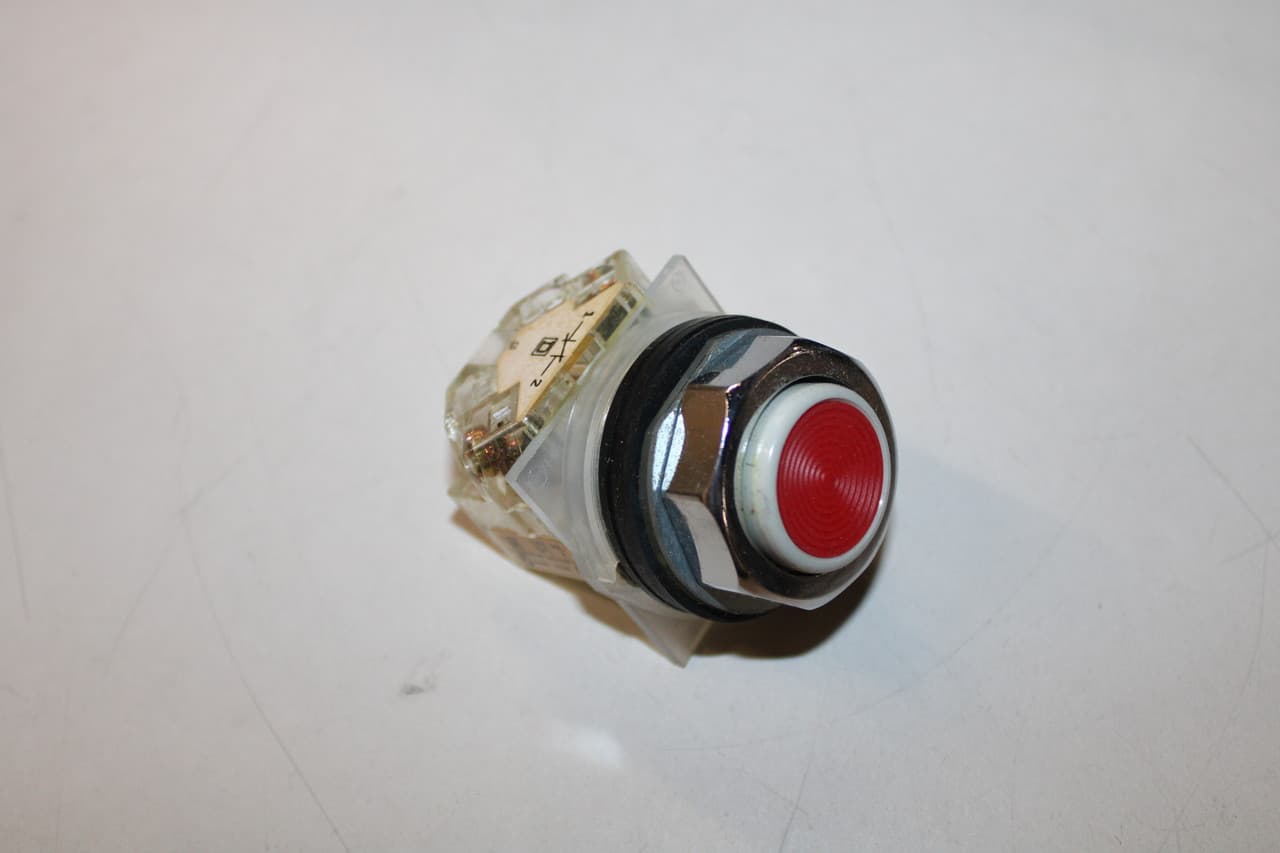

Schneider Electric 9001KR3RH6 is a flush push-button designed for various industrial applications. This push-button operates with a spring-return mechanism for impulse or momentary actions and features 1 Normally Closed (NC) contact. It is housed in a metal bezel with a chromium-plated finish, ensuring durability. The device is rated for a network frequency of 9001K and has an electrical durability with a load that utilizes silver alloy (Ag / Ni) contacts. It supports a primary voltage of 30 mm and has a round shape with a diameter of 600 V. The push-button is equipped with a screw-clamp trip unit type and is designed for a control circuit rated current of AC-15 3 A at 240Vac and DC-13 0.55 A at 125Vdc. It has a net height of 2.5 kV and a weight of 0.55 A. The product is rated for IP66 and NEMA 1, 2, 3, 3R, 4, 12, and 13, indicating a high level of protection against dust, water, and other environmental conditions. The earthing system is rated at (Ith) 10 A, and the type of lens is 1.18 inches.

Product Details

  • Shipping Height:
    3.00 In.
  • UPC:
    10785901042768
  • Shipping Length:
    4.00 In.
  • Shipping Weight:
    0.30 lbs.
  • Shipping Width:
    2.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9001KR3RH6 on Powermatic Associates is $66.00. Order now.
