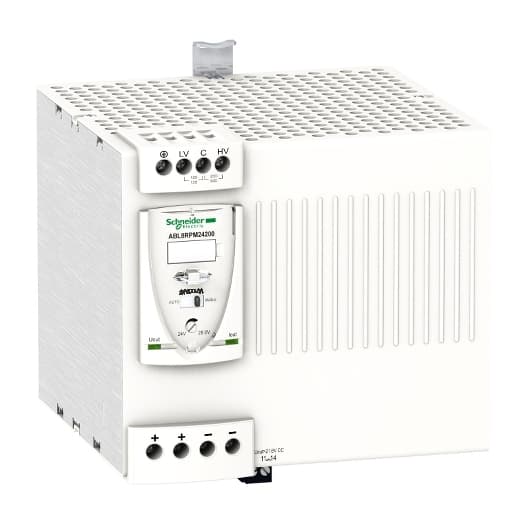

ABL8RPM24200 Schneider Electric Industrial Automation Components

ABL8RPM24200 on Powermatic Associates
Schneider Electric

Part#:ABL8RPM24200

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric ABL8RPM24200 is a regulated switch mode power supply unit (SMPS PSU) within the ABL8 sub-range, designed for DIN rail mounting. It operates on both single-phase and three-phase networks, with a supply voltage of 100-120 V AC (L-N) and 200-240 V AC (L-L). This unit provides a rated voltage of 24 V DC, a rated current of 20 A, and a rated power of 480 W. It features an IP20 degree of protection and is capable of operating within an ambient air temperature range of -25 to +60 °C without derating. The ABL8RPM24200 offers protection settings including manual or automatic reset for short-circuits and overload, automatic reset for thermal conditions, and manual reset for overvoltage (30-32V). It also includes protection functions against short-circuits, overvoltage, overload, thermal conditions, and undervoltage. The efficiency of this unit ranges from 88% to 100%, with a measurement function of cos phi 240V at 0.68. The hold time is 0.12 s at 400V and 0.02 s at 100V.

Product Details

  • Product Or Component Type
    Power supply
  • Power Supply Type
    Regulated switch mode
  • Inrush Current
    30 A
  • Permissible Temporary Current Boost
    1.5 x In for 4 s)
  • Rated Power In W
    480 W
  • Power Dissipation In W
    57.6 W
  • Height
    4.92 in (125 mm)
  • Anti-Harmonic Filter
    Low frequency harmonic currents
  • Depth
    5.71 in (145 mm)
  • Output Voltage Adjustment
    24...28.8 V adjustable
  • Power Supply Output Current
    20 A
  • Provided Equipment
    Power factor correction filter IEC 61000-3-2
  • Operating Position
    Vertical
  • Output Voltage
    24 V DC
  • Marking
    CE
  • Net Weight
    3.53 lb(US) (1.6 kg)
  • Range Of Product
    Modicon Power Supply
  • Efficiency
    88 %
  • Width
    5.75 in (146 mm)
  • Output Coupling
    Series Parallel
  • Nominal Input Voltage
    100...120 V AC single phase N-L1 200...240 V AC phase to phase L1-L2
  • Status LED
    Output voltage 1 LED green and red) Output current 1 LED green, red and orange)
  • Mounting Support
    35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail
  • Power Factor
    0.68 at 240 V AC 0.69 at 120 V AC
  • Input Voltage Limits
    85...132 V AC 170...264 V AC
  • Supply
    SELV EN/IEC 60950-1 SELV EN/IEC 60204-1 SELV IEC 60364-4-41
  • Connections - Terminals
    Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals
  • Output Protection Type
    Against overload manual or automatic reset Against overvoltage 30...32 V, manual reset Against short-circuits manual or automatic reset Against undervoltage tripping if U < 21.6 V Thermal automatic reset

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ABL8RPM24200 on Powermatic Associates is $716.00. Order now.
