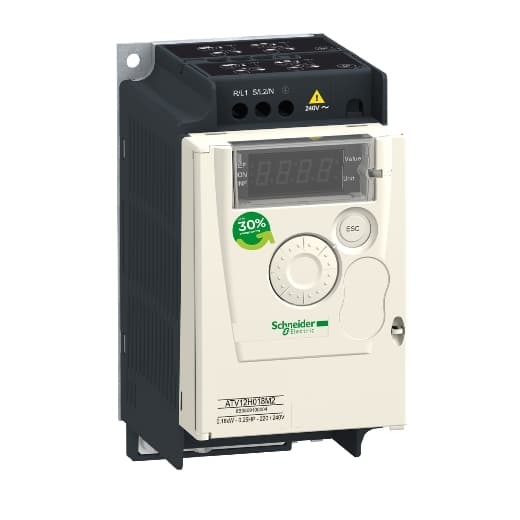

ATV12H037M2TQ Schneider Electric Industrial Automation Components

Product Details

• Assembly Style
  With heat sink
• Motor Starter Type
  Variable speed drive
• Product Or Component Type
  Variable speed drive
• Communication Port Protocol
  Modbus
• Physical Interface
  2-wire RS 485 for Modbus
• Component Name
  ATV12
• Product Destination
  Asynchronous motors
• Built-In Fan
  Without
• Transmission Frame
  RTU for Modbus
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Speed Range
  1…20
• Number Of Addresses
  1…247 Modbus
• Discrete Input Type
  Programmable LI1...LI4 24 V 18...30 V
• Range Of Product
  Altivar 12
• EMC Filter
  Integrated
• IP Degree Of Protection
  IP20 without blanking plate on upper part
• Marking
  CE
• Product Specific Application
  Simple machine
• Motor Power Kw
  0.37 kW
• Maximum Transient Current
  3.6 A 60 s
Width
2.83 in (72 mm)
Connector Type
1 RJ45 (on front face) for Modbus
Supply Frequency
50/60 Hz +/- 5 %
Electrical Connection
Terminal 3.5 mm², AWG 12 L1, L2, L3, U, V, W, PA, PC)
Phase
1 phase
Transient Overtorque
150…170 % of nominal motor torque depending on drive rating and type of motor
Prospective Line Isc
1 kA
Tightening Torque
7.08 lbf.in (0.8 N.m)
Analogue Input Number
1
Braking To Standstill
By DC injection, <30 s
Operating Position
Vertical +/- 10 degree
Noise Level
0 dB
Speed Drive Output Frequency
0.5…400 Hz
Quantity Per Set
Set of 14
Maximum Horse Power Rating
0.55 hp
Height
5.63 in (143 mm)
Discrete Output Number
2
Braking Torque
Up to 70 % of nominal motor torque without braking resistor
Depth
4.77 in (121.2 mm)
Analogue Output Number
1
Nominal Switching Frequency
4 kHz
Insulation
Electrical between power and control
Minimum Switching Current
5 mA 24 V DC logic relay
Net Weight
1.54 lb(US) (0.7 kg)
Continuous Output Current
2.4 A 4 kHz
Linearity Error
+/- 0.3 % of maximum value analogue input
Time Constant
20 ms +/- 1 ms for reference change
Discrete Input Number
4
Output Voltage
200...240 V 3 phase
Analogue Output Type
AO1 software-configurable voltage 0...10 V 470 Ohm 8 bits AO1 software-configurable current 0...20 mA 800 Ohm 8 bits
Line Current
5.9 A 200 V 4.9 A 240 V
Motor Slip Compensation
Preset in factory Adjustable
Switching Frequency
2...16 kHz adjustable 4...16 kHz with derating factor
Frequency Resolution
Analog input converter A/D, 10 bits Display unit 0.1 Hz
Sampling Duration
20 ms +/- 1 ms logic input 10 ms analogue input
Supply
Internal supply for reference potentiometer 5 V DC 4.75…5.25 V), <10 mA overload and short-circuit protection Internal supply for logic inputs 24 V DC 20.4…28.8 V), <100 mA overload and short-circuit protection
Discrete Output Type
Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O
Discrete Input Logic
Negative logic (sink), > 16 V, < 10 V 3.5 kOhm Positive logic (source), 0...< 5 V, > 11 V
Asynchronous Motor Control Profile
Quadratic voltage/frequency ratio Voltage/frequency ratio (V/f) Sensorless flux vector control
Acceleration And Deceleration Ramps
U Linear from 0 to 999.9 s S
Analogue Input Type
Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm
Variable Speed Drive Application Selection
Commercial equipment Mixer Commercial equipment Other application Textile Ironing
Transmission Rate
4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s
Maximum Switching Current
2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
Communication Service
Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43)
Protection Type
Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the d
