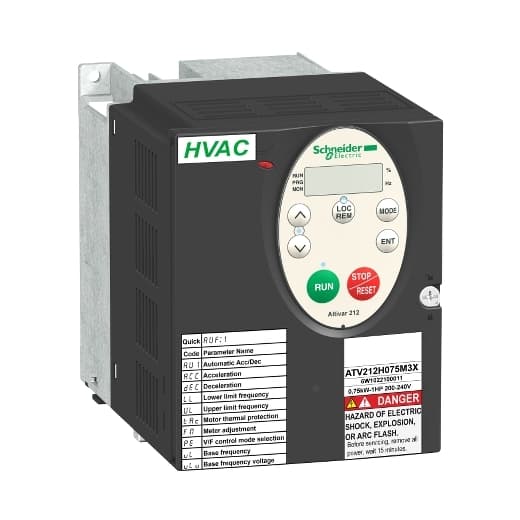

ATV212H075N4 Schneider Electric Industrial Automation Components

Product Details

• Net Weight
  4.41 lb(US) (2 kg)
• Width
  4.21 in (107 mm)
• Range Of Product
  Altivar 212
• Supply Voltage Limits
  323…528 V
• Output Voltage
  <= power supply voltage
• Analogue Output Number
  1
• Type Of Polarization
  No impedance
• Device Short Name
  ATV212
• EMC Filter
  Class C2 EMC filter integrated
• Speed Accuracy
  +/- 10 % of nominal slip 0.2 Tn to Tn
• Regulation Loop
  Adjustable PI regulator
• Minimum Switching Current
  3 mA 24 V DC configurable relay logic
• Prospective Line Isc
  5 kA
• Speed Range
  1…10
• Isolation
  Electrical between power and control
• Braking To Standstill
  By DC injection
• Maximum Horse Power Rating
  1 hp
• Motor Power Kw
  0.75 kW
• Apparent Power
  1.6 kVA 380 V
• Torque Accuracy
  +/- 15 %
Product Or Component Type
Variable speed drive
Supply Frequency
50...60 Hz - 5...5 %
Nominal Switching Frequency
12 kHz
Physical Interface
2-wire RS 485
Assembly Style
With heat sink
Product Specific Application
Pumps and fans in HVAC
Maximum Transient Current
2.4 A 60 s
Speed Drive Output Frequency
0.5…200 Hz
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Phase
3 phase
Product Destination
Asynchronous motors
Number Of Addresses
1…247
Local Signalling
for DC bus energized 1 LED (red)
Transmission Rate
9600 bps or 19200 bps
Power Dissipation In W
55 W
Transient Overtorque
120 % of nominal motor torque +/- 10 % 60 s
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Option Card
Communication card LonWorks
Functionality
Mid
Operating Position
Vertical +/- 10 degree
Specific Application
HVAC
Discrete Output Number
2
Transmission Frame
RTU
Height
5.63 in (143 mm)
Motor Starter Type
Variable speed drive
Depth
5.91 in (150 mm)
Data Format
8 bits, 1 stop, odd even or no configurable parity
Air Flow
5019.36 Gal/hr(US) (19 m3/h)
IP Degree Of Protection
IP21
Analogue Input Number
2
Dielectric Strength
3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Connector Type
1 open style 1 RJ45
Switching Frequency
6...16 kHz adjustable 12...16 kHz with derating factor
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.01 in² (6 mm²) / AWG 10
Line Current
1.4 A 480 V 1.7 A 380 V
Continuous Output Current
2.2 A 380 V 2.2 A 460 V
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Tightening Torque
11.51 lbf.in (1.3 N.m), 11.5 lb.in L1/R, L2/S, L3/T) 5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Acceleration And Deceleration Ramps
Automatic based on the load Linear adjustable separately from 0.01 to 3200 s
Motor Power Range AC-3
0.55…1 kW 380…440 V 3 phase 0.55…1 kW 480…500 V 3 phase
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Motor Slip Compensation
Not available in voltage/frequency ratio motor control Automatic whatever the load Adjustable
Variable Speed Drive Application Selection
Compressor for scroll Building - HVAC Fan Building - HVAC Pump Building - HVAC
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Asynchronous Motor Control Profile
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Flux vector control without sensor, standard Voltage/frequency ratio, 5 po
Communication Port Protocol
Modbus METASYS N2 APOGEE FLN LonWorks BACnet
Communication Service
Read device identification (43) Time out setting from 0.1 to 100 s Write single register (06) Write multiple registers (16) 2 words maximum Monitoring inhibitable Read holding registers (03) 2 words maximum
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
