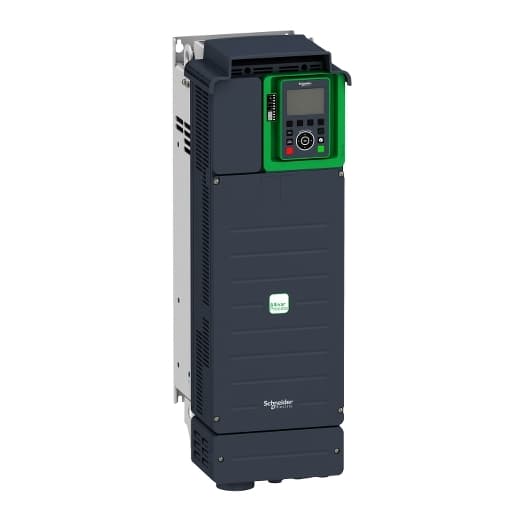

ATV630D15M3 Schneider Electric Industrial Automation Components

Product Details

• Range Of Product
  Altivar Process ATV600
• Device Short Name
  ATV630
• Type Of Cooling
  Forced convection
• Mounting Mode
  Wall mount
• Product Specific Application
  Process and utilities
• Supply Frequency
  50...60 Hz - 5...5 %
• Output Voltage
  <= power supply voltage
• Degree Of Protection
  UL type 1 UL 508C
• Safety Function
  STO (safe torque off) SIL 3
• Braking To Standstill
  By DC injection
• Relay Output Number
  3
• EMC Filter
  Without EMC filter
• Product Or Component Type
  Variable speed drive
• Output Frequency
  0.0001…0.5 kHz
• Depth
  10.67 in (271 mm)
• Variant
  Standard version
• [Us] Rated Supply Voltage
  200...240 V - 15...10 %
• Acceleration And Deceleration Ramps
  Linear adjustable separately from 0.01...9999 s
• Net Weight
  29.98 lb(US) (13.6 kg)
• Minimum Switching Current
  Relay output R1, R2, R3 5 mA 24 V DC
Method Of Access
Slave Modbus TCP
Width
8.90 in (226 mm)
Motor Power Range AC-3
15…25 kW 200…240 V 3 phase
Analogue Input Number
3
Exchange Mode
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Nominal Switching Frequency
4 kHz
Height
26.50 in (673 mm)
Analogue Output Number
2
Isolation
Between power and control terminals
Prospective Line Isc
50 kA
Speed Drive Output Frequency
0.1…599 Hz
Number Of Addresses
1…247 Modbus serial
Discrete Input Number
8
Refresh Time
Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Maximum Horse Power Rating
20 hp normal duty 15 hp heavy duty
Apparent Power
18.9 kVA 240 V normal duty) 14.3 kVA 240 V heavy duty)
Switching Frequency
2...12 kHz adjustable 4...12 kHz with derating factor
Frequency Resolution
Display unit 0.1 Hz Analog input 0.012/50 Hz
Linearity Error
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AO1, AO2: +/- 0.2 % for analog output
Analogue Input Type
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Accuracy
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Permissible Temporary Current Boost
1.1 x In during 60 s (normal duty) 1.5 x In during 60 s (heavy duty)
Connector Type
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP RJ45 (on the remote graphic terminal) for Modbus serial
Product Destination
Synchronous motors Asynchronous motors
Motor Power Kw
15 kW normal duty) 11 kW heavy duty)
Electrical Connection
Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 Line side: screw terminal 25...50 mm²/AWG 4...AWG 1 Motor screw terminal 25...50 mm² AWG 4...AWG 1
Synchronous Motor Control Profile
Permanent magnet motor Synchronous reluctance motor
Continuous Output Current
63.4 A 4 kHz normal duty 46.8 A 4 kHz heavy duty
Maximum Transient Current
69.7 A 60 s normal duty) 70.2 A 60 s heavy duty)
IP Degree Of Protection
IP21IEC 61800-5-1 IP21IEC 60529
Discrete Input Type
DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm DI5, DI6 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Input Compatibility
DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Analogue Output Type
Software-configurable voltage AO1, AO2 0...10 V DC 470 Ohm 10 bits Software-configurable current AO1, AO2: 0...20 mA, resolution 10 bits
Supply
External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di
Communication Port Protocol
Ethernet Modbus serial Modbus TCP
Asynchronous Motor Control Profile
Variable torque standard Constant torque standard Optimized torque mode
Line Current
52.6 A 200 V normal duty) 45.5 A 240 V normal duty) 40.1 A 200 V heavy duty) 34.3 A 240 V heavy duty)
Relay Output Type
Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 100000 cycles Configurable relay logic R3 sequence relay NO 100000 cycles
Local Signalling
3 LEDs for local diagnostic 3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage
Sampling Duration
2 ms +/- 0.5 ms DI1...DI4) - discrete input 5 ms +/- 1 ms DI5, DI6) - discrete input 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input 10 ms +/- 1 ms AO1) - analog output
Motor Slip Compensation
Can be suppressed Automatic whatever the load Not available in permanent magnet motor law Adjustable
Discrete Input Logic
Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) ST
Maximum Switching Current
Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms
Option Card
Slot A: communication module, Profibus DP V1 Slot A: communication module, Profinet Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45

Variable Speed Drive Application Selection
Compressor centrifugal Building - HVAC Other application Food and beverage processing Fan Mining mineral and metal Pump Mining mineral and metal Fan Oil and gas Other application Water and waste water Screw compressor Buildin
Protection Type
Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive
