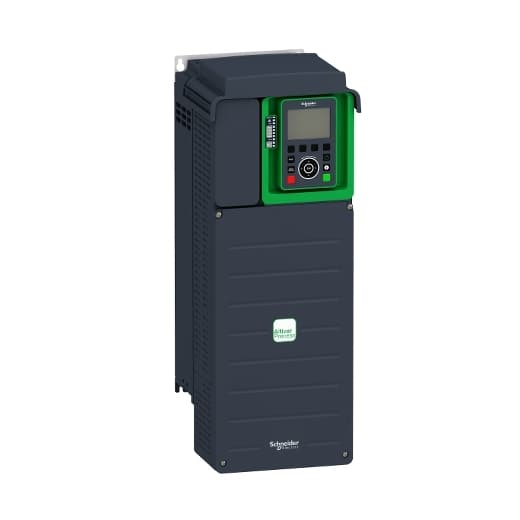

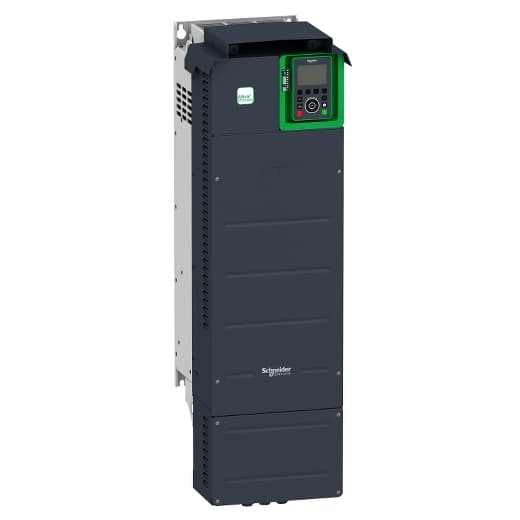

ATV930D11M3 Schneider Electric Industrial Automation Components

Product Details

• Nominal Switching Frequency
  4 kHz
• Number Of Addresses
  1…247 Modbus serial
• Net Weight
  30.42 lb(US) (13.8 kg)
• EMC Filter
  Without EMC filter
• Number Of Preset Speeds
  16 preset speeds
• Data Format
  8 bits, configurable odd, even or no parity Modbus serial
• Supply Frequency
  50...60 Hz +/- 5 %
• Safety Function
  STO (safe torque off) SIL 3
• Output Voltage
  <= power supply voltage
• Type Of Polarization
  No impedance Modbus serial
• Relay Output Number
  3
• Power Range
  7…11 kW 200…240 V 3 phase
• Device Short Name
  ATV930
• Height
  21.49 in (545.9 mm)
• Minimum Switching Current
  Relay output R1, R2, R3 5 mA 24 V DC
• Acceleration And Deceleration Ramps
  Linear adjustable separately from 0.01...9999 s
• Method Of Access
  Slave Modbus TCP
• Product Or Component Type
  Variable speed drive
• Speed Drive Output Frequency
  0.1…599 Hz
• Analogue Input Number
  3
Discrete Output Number
2
Range Of Product
Altivar Process ATV900
Phase
3 phase
Braking To Standstill
By DC injection
Transmission Frame
RTU Modbus serial
Width
8.31 in (211 mm)
Exchange Mode
Half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Isolation
Between power and control terminals
Degree Of Protection
UL type 1 UL 508C
[Us] Rated Supply Voltage
200...240 V - 15...10 %
Prospective Line Isc
50 kA
Physical Interface
2-wire RS 485 Modbus serial
Analogue Output Number
2
Depth
9.25 in (235 mm)
Refresh Time
Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Device Application
Industrial Application
Type Of Cooling
Forced convection
Discrete Input Number
10
Mounting Mode
Wall mount
Accuracy
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Synchronous Motor Control Profile
Permanent magnet motor Synchronous reluctance motor
Transmission Rate
10/100 Mbit/s Ethernet IP/Modbus TCP 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
Variant
Standard version With braking chopper
Motor Power Kw
11 kW normal duty) 7.5 kW heavy duty)
Linearity Error
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input AQ1, AQ2 +/- 0.2 % analog output
Maximum Horse Power Rating
15 hp normal duty 10 hp heavy duty
Continuous Output Current
46.8 A 4 kHz normal duty 32.7 A 4 kHz heavy duty
Maximum Transient Current
56.2 A 60 s normal duty) 49.1 A 60 s heavy duty)
Product Destination
Synchronous motors Asynchronous motors
Frequency Resolution
Display unit 0.1 Hz Analog input 0.012/50 Hz
Switching Frequency
2...16 kHz adjustable 4...16 kHz with derating factor
Input Compatibility
DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 DI7, DI8 pulse input level 1 PLC IEC 65A-68 STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
Discrete Input Type
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V) STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Supply
External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply for di
Connector Type
2 RJ45 Ethernet IP/Modbus TCP on the control block 1 RJ45 Modbus serial on the control block
IP Degree Of Protection
IP21 IEC 61800-5-1 IP21 IEC 60529
Apparent Power
13.7 kVA 240 V normal duty) 9.6 kVA 240 V heavy duty)
Relay Output Type
Configurable relay logic R1 fault relay NO/NC 100000 cycles Configurable relay logic R2 sequence relay NO 1000000 cycles Configurable relay logic R3 sequence relay NO 1000000 cycles
Analogue Output Type
Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Discrete Output Type
Logic output DQ+ 0…1 kHz <= 30 V DC 100 mA Programmable as pulse output DQ+ 0…30 kHz <= 30 V DC 20 mA Logic output DQ- 0…1 kHz <= 30 V DC 100 mA
Analogue Input Type
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Sampling Duration
2 ms +/- 0.5 ms DI1...DI8) - discrete input 5 ms +/- 1 ms DI7, DI8) - pulse input 1 ms +/- 1 ms AI1, AI2, AI3) - analog input 5 ms +/- 1 ms AQ1, AQ2) - analog output
Motor Slip Compensation
Not available in permanent magnet motor law Can be suppressed Adjustable Automatic whatever the load
Protection Type
Thermal protection motor Safe torque off motor Motor phase break motor Thermal protection drive Safe torque off drive Overheating drive Overcurrent between output phases and earth drive Overload of output voltage drive
Electrical Connection
Control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 Line side screw terminal 10...16 mm² AWG 8...AWG 6 DC bus screw terminal 10...16 mm² AWG 8...AWG 6 Motor: screw terminal 16 mm²/AWG 6
Discrete Input Logic
Positive logic (source) DI1...DI8), < 5 V, > 11 V Negative logic (sink) DI1...DI8), > 16 V, < 10 V Positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V Positive logic (source) STOA, STOB), < 5 V, > 11 V
Local Signalling
Local diagnostic 3 LED mono/dual colour) Embedded communication status 5 LED dual colour) Communication module status 2 LED dual colour) Presence of voltage 1 LED red)
Communication Port Protocol
Modbus TCP Modbus serial EtherNet/IP
Asynchronous Motor Control Profile
Optimized torque mode Variable torque standard Constant torque standard
Line Current
39.3 A 200 V normal duty) 32.9 A 240 V normal duty) 27.2 A 200 V heavy duty) 23.1 A 240 V heavy duty)
Option Module
Slot A communication module Profibus DP V1 Slot A communication module Profinet Slot A communication module DeviceNet Slot A communication module EtherCAT Slot A communication module CANopen daisy chain RJ45 Slot A communication m
Maximum Switching Current
Relay output R1 resistive, cos phi = 1 3 A 250 V AC Relay output R1 resistive, cos phi = 1 3 A 30 V DC Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC Relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC Relay output R2
Variable Speed Drive Application Selection
Mixer Food and beverage processing Conveyor Food and beverage processing Shredder Food and beverage processing Process crane Hoisting Thruster Marine Winch Marine Press Material working (wood, ceramic, stone, pvc, metal)
