BDF16045 Schneider Electric Electronic Components

BDF16045 on Powermatic Associates
Schneider Electric

Part#:BDF16045

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric BDF16045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 1P-1t design. It has a rated current of 45A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, offering a degree of protection of IP40. This MCCB is designed for fixed mounting on DIN rail or as an individual unit mount on a plate, with a 1-pole (1P) configuration. It has a net height of 137 mm, a net depth of 80 mm, and a net width of 27 mm. The protection settings include over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. It also features thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 45 AT. The electrical durability with load is rated at 10,000 operations at 240Vac; In, and it has a mechanical durability of 15,000 operations at no load. The frame current rating is 100 AF, with an operating mode of toggle (manual). The short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Y/347Vac, and 10kA at 250Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Range
    PowerPact
  • Breaking Capacity Code
    D
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Utilisation Category
    Category A
  • Height
    5.39 in (137 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Net Weight
    1.01 lb(US) (0.46 kg)
  • Number Of Poles
    1P
  • Device Short Name
    BD 045
  • Trip Unit Technology
    Thermal-magnetic
  • Electrical Connection
    Terminal nut ON and OFF end
  • Quantity Per Set
    Set of 1
  • Line Rated Current
    45 A
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • Depth
    3.15 in (80 mm)
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex F ed 5.2
  • Trip Unit Name
    TM-D
  • Protected Poles Description
    1t
  • Width
    1.06 in (27 mm)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • Connection Pitch
    1.06 in (27 mm)
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    80 %
  • Color
    Gray RAL 7016)
  • 9 Mm Pitches
    3
  • Control Type
    Toggle
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 In
  • Product Name
    PowerPact B
  • Suitability For Isolation
    Yes IEC 60947-2
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480Y/277 V AC 50/60 Hz UL 489 10 kA 125 V DC 50/60 Hz UL 489 14 kA 600/347 V AC 50/60 Hz UL 489

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDF16045 on Powermatic Associates is $343.00. Order now.

BDF16045 Related Documents

Instruction Sheet-1631033836567.pdfProduct Datasheet-1631033836565.pdfCatalog-1631033836574.pdf

Similar products from: Schneider Electric Electronic Components

QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

6 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
H361 on Powermatic Associates

H361

Schneider Electric

Schneider Electric H361 is a switch-disconnector that falls under the Safety Switches (Heavy Duty) sub-range, specifically designed as a General Duty Single Throw Safety Switch (Fused). It features 3 poles and is rated for a current of 30 A. The dimensions of this part are a net height of 371 mm, a net width of 165 mm, and a net depth of 124 mm. It operates via a toggle mechanism. The H361 has a short circuit breaking rating of 10kA maximum with fuse types H or K and can reach up to 200kA maximum with fuse types R, J, or L. It is equipped with lug type terminals and is designed to handle a rated voltage (AC) of 600 V phase-to-phase.

0 in stock
M9U31110 on Powermatic Associates

M9U31110

Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads, falling under the C60H-DC sub-range. It features a single pole configuration and is rated for a current of 10A with a maximum voltage capacity of 500Vdc. This MCB is compliant with UL1077 standards, ensuring its suitability for a variety of applications. It offers a short circuit breaking rating of 5kA AIR at 250Vdc. The M9U31110 is equipped with a D tripping curve, ensuring precise protection for connected circuits by targeting the specific characteristics of DC loads.

1 in stock
BJF36035 on Powermatic Associates

BJF36035

Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design, with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is designed for a fixed busbar connection with a term. nut kit on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It operates within Utilisation category A and has protection settings for over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated impulse voltage (Uimp) is 8 kV, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal and magnetic protection functions, with a trip current rating of 35 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

7 in stock
LC1F400P7 on Powermatic Associates

LC1F400P7

Schneider Electric

Schneider Electric LC1F400P7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features ring-lugs/bar connections and is equipped with 3 poles (3P; 3NO). The contactor is rated for currents of 500A under AC-1 conditions and 400A at 440Vac under AC-3 conditions. The control voltage (AC) specifications are 196-253Vac (230Vac nominal; 40-400Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 1000 V and a rated impulse voltage (Uimp) of 8 kV. It has no normally open (NO) or normally closed (NC) auxiliary contacts. The rated active power ranges from 110kW at 220-230Vac to 280kW at 660-690Vac under AC-3 conditions, with a mechanical durability of 10,000,000 operations at no load. The rated voltage (AC) phase-to-phase is 1000 V.

2 in stock

Manufacturer warranty

BDF16045 Schneider Electric

$343.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$343.00

$343.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BDF16045 with other Electronic Components products

Range

Breaking Capacity Code

[Ui] Rated Insulation Vol...

Utilisation Category

Height

[Uimp] Rated Impulse With...

Net Weight

Number Of Poles

Device Short Name

Trip Unit Technology

Selected product

BDF16045
Backordered
BDF16045
Schneider Electric

Square D by Schneider Electric BDF16045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

RangePowerPact

Breaking Capacity CodeD

[Ui] Rated Insulation Voltage800 V IEC 60947-2

Utilisation CategoryCategory A

Height5.39 in (137 mm)

[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2

Net Weight1.01 lb(US) (0.46 kg)

Number Of Poles1P

Device Short NameBD 045

Trip Unit TechnologyThermal-magnetic

BJF36035
7 in stock
BJF36035
Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

RangePowerPact

Breaking Capacity CodeJ

[Ui] Rated Insulation Voltage-

Utilisation Category-

Height-

[Uimp] Rated Impulse Withstand Voltage-

Net Weight-

Number Of Poles3P

Device Short NameBJ 035

Trip Unit Technology-

M9U31110
1 in stock
M9U31110
Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads,...

RangeMulti 9

Breaking Capacity Code-

[Ui] Rated Insulation Voltage-

Utilisation Category-

Height-

[Uimp] Rated Impulse Withstand Voltage-

Net Weight-

Number Of Poles-

Device Short NameC60H-DC

Trip Unit Technology-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

Relevant products

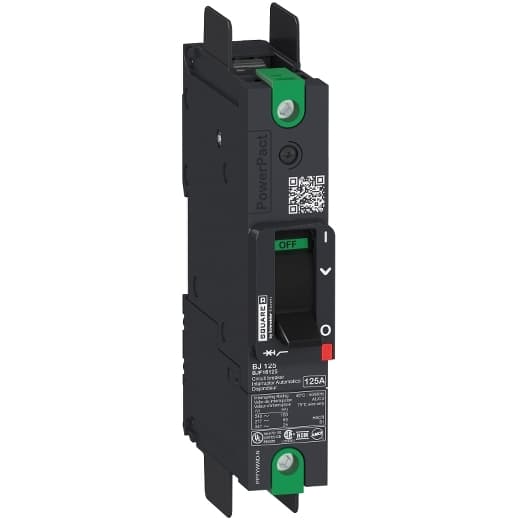

BDF16070 on Powermatic Associates
