BDL36080 Schneider Electric Industrial Automation Components

BDL36080 on Powermatic Associates
Schneider Electric

Part#:BDL36080

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

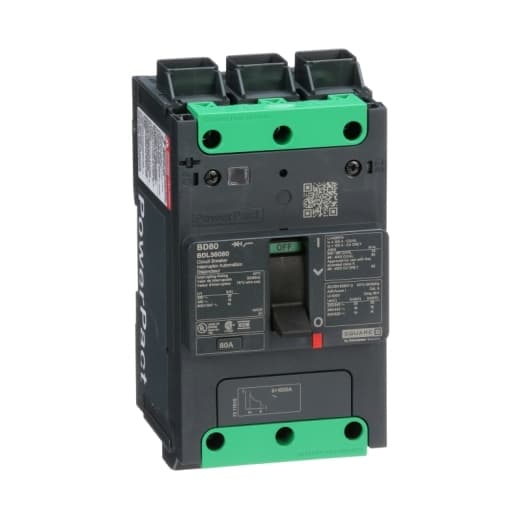

Square D by Schneider Electric BDL36080 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range. It features a PowerPact B-Frame 100 TMD design with 3 poles (3P) and an 80A rating at 600Y/347Vac with a 14kA breaking capacity and Everlink (Creep compensating) lugs on both line and load sides for connection. This MCCB has a rated impulse voltage (Uimp) of 8 kV, an IP40 degree of protection, and is designed for fixed mounting on DIN rail or as an individual unit mount on a plate. It offers a mechanical durability of 20,000 operations at no load and an electrical durability of 10,000 operations with load at 440Vac. The rated current is 80A, with a rated voltage (AC) of 600Vac 600Y/347Vac, and a rated voltage (DC) of 250Vdc. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V. It provides protection functions including thermal protection (overload) and magnetic protection (short-circuit), with fixed protection settings for over-current at 80A, short-circuit hold current at 800A, and short-circuit trip current at 1200A. The trip unit type is thermal-magnetic (fixed) without a display, and it operates via a toggle (manual) mechanism. The frame current rating is 100 AF, and the short circuit breaking ratings vary by voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac under UL489 standards. The MCCB has a net height of 137 mm, a net depth of 80 mm, and a net width of 81 mm, falling under utilisation category A.

Product Details

  • Color
    Grey (RAL 7016)
  • Product Name
    PowerPact B
  • Breaking Capacity Code
    D
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • 9 Mm Pitches
    9
  • Connection Pitch
    1.06 in (27 mm)
  • Net Weight
    2.37 lb(US) (1.074 kg)
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Control Type
    Toggle
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Height
    5.39 in (137 mm)
  • Device Application
    Distribution
  • Number Of Poles
    3P
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Quantity Per Set
    Set of 1
  • Width
    3.19 in (81 mm)
  • Line Rated Current
    80 A
  • Trip Unit Technology
    Thermal-magnetic
  • Device Short Name
    BD 080
  • Suitability For Isolation
    Yes IEC 60947-2
  • Product Or Component Type
    Circuit breaker
  • Continuous Current Rating
    80 %
  • Depth
    3.15 in (80 mm)
  • Range
    PowerPact
  • Utilisation Category
    Category A
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Mounting Mode
    Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL36080 on Powermatic Associates is $1,195.00. Order now.
