Part#:BGA140201

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

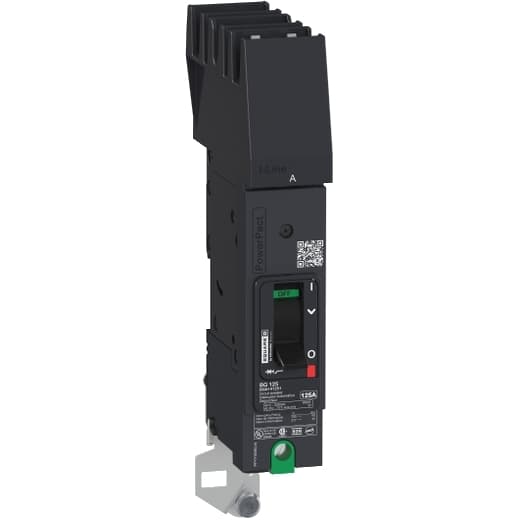

Product description

Square D by Schneider Electric BGA140201 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGA sub-range, featuring a PowerPact B-Frame 100 TMD 1P 20A 480Y/277Vac 35kA I-line A 80% rated design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes an I-line connection (A phase) with a degree of protection rated at IP40. The rated current is 20A, with a rated voltage (AC) of 480Vac 480Y/277Vac. This MCCB is designed for mechanical durability of 20,000 operations at no load and mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism for robust attachment. It is a 1-pole (1P) device with dimensions of 137 mm in height, 89 mm in depth, and 27 mm in width. The utilisation category is A, and it offers protection settings including over-current fixed at 20A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 20 AT. Its electrical durability with load is 10,000 operations at 240Vac; In, and it has a frame current rating of 100 AF. The operating mode is toggle (manual), and it has a short circuit breaking rating of 65kA at 240Vac; UL489, 35kA at 480Vac; UL489, 35kA at 480Y/277Vac; UL489, 14kA at 600Y/347Vac; UL489, and 20kA at 250Vdc; UL489. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
  • Electrical Connection
    I-Line connection line Lugs load
  • Tightening Torque
    31.86…38.94 lbf.in (3.6…4.4 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 44.25…54.87 lbf.in (5…6.2 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Net Weight
    1.41 lb(US) (0.6375 kg)
  • Quantity Per Set
    Set of 1
  • Depth
    3.50 in (89 mm)
  • 9 Mm Pitches
    3
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Phase Connection
    A
  • Width
    1.06 in (27 mm)
  • Height
    5.39 in (137 mm)
  • Color
    Grey (RAL 7016)
  • Mounting Mode
    I-Line
  • Mounting Height
    1.50 in (38.1 mm)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • AWG Gauge
    AWG 14...AWG 2/0 aluminium/copper
  • Connection Pitch
    1.06 in (27 mm)
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Utilisation Category
    Category A
  • Continuous Current Rating
    80 %
  • Suitability For Isolation
    Yes IEC 60947-2
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Breaking Capacity Code
    G
  • Product Name
    PowerPact B
  • Number Of Poles
    1P
  • Control Type
    Toggle
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BG 020
  • Range
    PowerPact
  • Line Rated Current
    20 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BGA140201 on Powermatic Associates is $422.00. Order now.
