BGF16045 Schneider Electric Electronic Components

BGF16045 on Powermatic Associates
Schneider Electric

Part#:BGF16045

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric BGF16045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 100 TMD 1P-1t 45A 600Y/347Vac 18kA terminal nut 80% rated design. It has a rated impulse voltage (Uimp) of 8 kV and utilizes a terminal nut kit for fixed busbar connection on both line and load sides. The degree of protection is IP40, with a rated current of 45A and a rated voltage (AC) of 600Vac 600Y/347Vac. It offers mechanical durability of 15,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 1-pole (1P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 27 mm in width. It falls under utilisation category A and features protection settings including over-current fixed at 45A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. Its protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 45 AT. The electrical durability with load is 10,000 operations at 240Vac; In, and the frame current rating is 100 AF. It operates via a toggle (manual) and has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    65 kA 208Y/120 V AC 50/60 Hz UL 489 65 kA 240 V AC 50/60 Hz UL 489 35 kA 480Y/277 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 20 kA 125 V DC UL 489
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • Net Weight
    1.01 lb(US) (0.46 kg)
  • Quantity Per Set
    Set of 1
  • Depth
    3.15 in (80 mm)
  • Height
    5.39 in (137 mm)
  • Width
    1.06 in (27 mm)
  • Color
    Gray RAL 7016)
  • 9 Mm Pitches
    3
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex F ed 5.2
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Electrical Connection
    Terminal nut ON and OFF end
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 In
  • Connection Pitch
    1.06 in (27 mm)
  • Utilisation Category
    Category A
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Trip Unit Name
    TM-D
  • Continuous Current Rating
    80 %
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • [Ics] Rated Service Breaking Capacity
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz UL 489
  • Trip Unit Technology
    Thermal-magnetic
  • Breaking Capacity Code
    G
  • Protected Poles Description
    1t
  • Control Type
    Toggle
  • Line Rated Current
    45 A
  • Number Of Poles
    1P
  • Product Name
    PowerPact B
  • Device Application
    Distribution
  • Product Or Component Type
    Circuit breaker
  • Device Short Name
    BG 045
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BGF16045 on Powermatic Associates is $477.00. Order now.

BGF16045 Related Documents

Product Datasheet-1631034142964.pdfInstruction Sheet-1631034142973.pdfCatalog-1631034142961.pdf

Similar products from: Schneider Electric Electronic Components

QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

8 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
LJB606 on Powermatic Associates

LJB606

Schneider Electric

WIREWAY 6 x 6 - N12 - 6 in lg

2 in stock
LJB64 on Powermatic Associates

LJB64

Schneider Electric

WIREWAY 6 x 6 - N12 - 4 ft lg

3 in stock
LC1F400G7 on Powermatic Associates

LC1F400G7

Schneider Electric

Schneider Electric LC1F400G7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration and supports ring-lugs/bar connections. The contactor is rated for currents of 500A under AC-1 conditions and 400A at 440Vac under AC-3 conditions. It operates with a control voltage (AC) range of 102-132Vac (120Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model does not include normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltage (Uimp) of 8 kV and supports rated active power (kW) of 110kW at 220-230Vac, 200kW at 380-400Vac, 220kW at 415Vac, 250kW at 440Vac, 257kW at 500Vac, 280kW at 660-690Vac, and 185kW at 1000Vac, all under AC-3 conditions. The LC1F400G7 boasts a mechanical durability of 10,000,000 operations at no load and is designed for phase-to-phase rated voltage (AC) applications up to 1000 V.

1 in stock
LJB65 on Powermatic Associates

LJB65

Schneider Electric

WIREWAY 6 x 6 - N12 - 5 ft lg

2 in stock

Manufacturer warranty

BGF16045 Schneider Electric

$477.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$477.00

$477.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare BGF16045 with other Electronic Components products

Breaking Capacity

AWG Gauge

Tightening Torque

Mounting Mode

Net Weight

Quantity Per Set

Depth

Height

Width

Color

Selected product

BGF16045
Backordered
BGF16045
Schneider Electric

Square D by Schneider Electric BGF16045 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity65 kA 208Y/120 V AC 50/60 Hz...

AWG GaugeAWG 14...AWG 8 aluminium/cop...

Tightening Torque44.25 lbf.in (5 N.m) 0.00…0....

Mounting ModeClip-on 35 mm symmetrical DI...

Net Weight1.01 lb(US) (0.46 kg)

Quantity Per SetSet of 1

Depth3.15 in (80 mm)

Height5.39 in (137 mm)

Width1.06 in (27 mm)

ColorGray RAL 7016)

BJF36035
7 in stock
BJF36035
Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Breaking Capacity100 kA 208Y/120 V AC 50/60 H...

AWG Gauge-

Tightening Torque-

Mounting Mode-

Net Weight-

Quantity Per Set-

Depth-

Height-

Width-

Color-

M9U31110
1 in stock
M9U31110
Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads,...

Breaking Capacity10 kA Icu 220 V DC EN/IEC 60...

AWG Gauge-

Tightening Torque-

Mounting Mode-

Net Weight-

Quantity Per Set-

Depth-

Height-

Width-

Color-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

M-2218-3.0ES500 on Powermatic Associates

M-2218-3.0ES500

Novanta IMS

Novanta IMS M-2218-3.0ES500 is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a 500-line single-end optical encoder with an index mark and a smooth shaft with a single flat (single shaft end) single (1) motor stack. It is designed with bare end flying leads for connection, operates on a rated current of 3A, and supports a supply voltage range of 24Vdc-75Vdc, including 48Vdc, 60Vdc, and 72Vdc options. This stepper motor is equipped with a 57x57mm flange for mounting, can operate in ambient air temperatures ranging from -25 to +40°C, and has a moment of inertia of 0.12kg.cm^2. It delivers a stall torque of 71N.cm (100oz-in) and can be stored in temperatures ranging from -25 to +70°C. The motor offers a resolution of 1.8° step angle.

0 in stock

Relevant products

BGF16040 on Powermatic Associates

BGF16040

Verified stock: 0

Square D by Schneider Electric BGF16040 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, designed with a PowerPact B-Frame 100 TMD 1P-1t 40A 600Y/347Vac 18kA terminal nut 80% rated. It features a rated impulse voltage (Uimp) of 8 kV and utilizes a terminal nut kit for fixed busbar connection on both line and load sides. The device offers a degree of protection of IP40 and supports a rated current of 40A with a rated voltage (AC) of 600Vac 600Y/347Vac. It is built for mechanical durability up to 15,000 operations at no load and can be mounted either on a DIN rail or as an individual unit on a plate. This 1-pole (1P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 27 mm in width. It falls under utilisation category A and provides protection settings including over-current fixed at 40A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. It offers thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 40 AT. The electrical durability with load is rated for 10,000 operations at 240Vac; In, and the frame current rating is 100 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

BGF16110 on Powermatic Associates

BGF16110

Verified stock: 0

Square D by Schneider Electric BGF16110 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BGF sub-range, featuring a PowerPact B-Frame 125 TMD 1P-1t design. It has a rated current of 110A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. The connection type is a terminal nut kit for fixed busbar connection on both line and load sides, and it offers a degree of protection of IP40. This MCCB has a mechanical durability of 15,000 operations and can be mounted either on a DIN rail or as an individual unit on a plate. It is a 1-pole (1P) device with dimensions of 137 mm in height, 80 mm in depth, and 27 mm in width. The utilisation category is A, and it features over-current protection fixed at 110A, short-circuit hold current protection fixed at 1000A, and short-circuit trip current protection fixed at 1500A. The rated voltage for DC applications is 125Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 240 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 110 AT. The electrical durability with load is 10,000 operations at 240Vac; In, and the frame current rating is 125 AF. The operating mode is manual toggle, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Schneider Electric

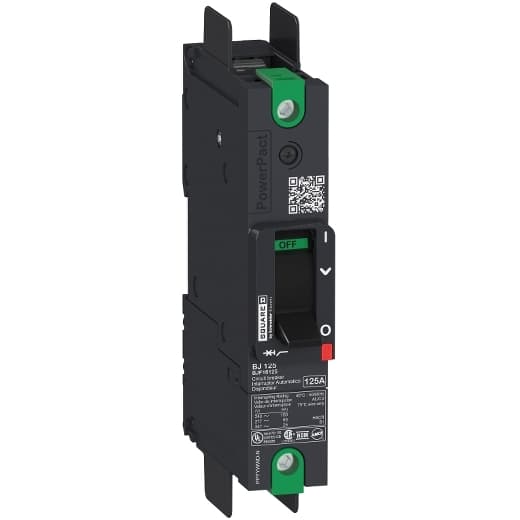

BGF16025 on Powermatic Associates
