CQO124M100PC Schneider Electric Electronic Components

CQO124M100PC on Powermatic Associates
Schneider Electric

Part#:CQO124M100PC

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

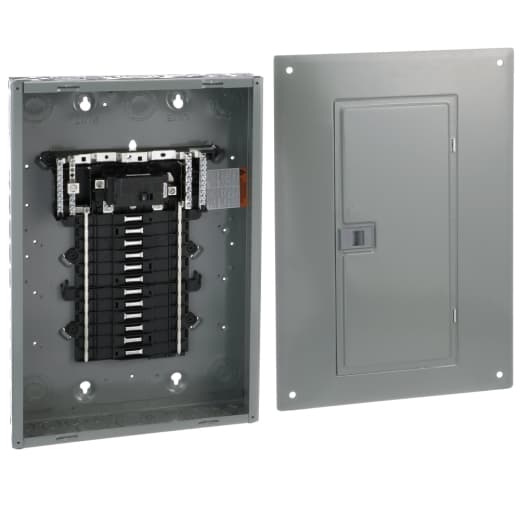

Loadcentre, QO, 1 phase, 24 spaces, 44 circuits, 100A main breaker, PoN, NEMA1, combo cover, CSA

Product Details

  • Rated Current
    100 A
  • Maximum Number Of Single Pole Circuits
    44
  • Height
    20.91 in (531 mm)
  • Tightening Torque
    Cover 20 lb.in
  • Number Of Spaces
    24
  • Voltage Rating
    240 V AC
  • Number Of Phases
    1 phase
  • Product Type
    Load Center
  • Load Center Type
    Main breaker
  • Cover Type
    Combination flush/surface cover
  • Width
    14.25 in (362 mm)
  • Marketing Trade Name
    QO
  • Depth
    3.74 in (95 mm)
  • Max Short Circuit Current Rating
    22 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CQO124M100PC on Powermatic Associates is $670.00. Order now.
