CQO132M100PC Schneider Electric Electronic Components

CQO132M100PC on Powermatic Associates
Schneider Electric

Part#:CQO132M100PC

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

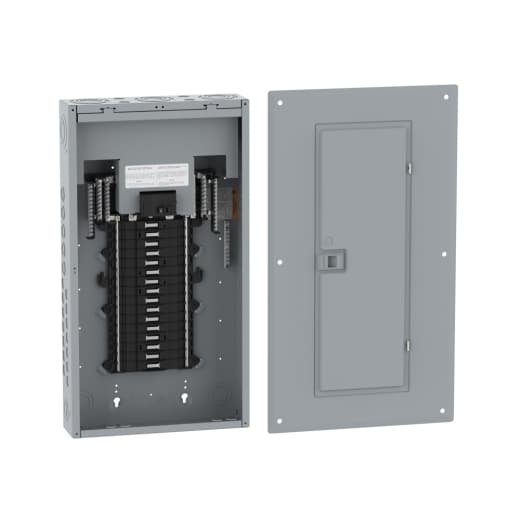

Loadcentre, QO, 1 phase, 32 spaces, 53 circuits, 100A main breaker, PoN, NEMA1, combo cover, CSA

Product Details

  • Tightening Torque
    Cover 20 lb.in
  • Load Center Type
    Main breaker
  • Height
    26.02 in (661 mm)
  • Cover Type
    Combination flush/surface cover
  • Width
    14.25 in (362 mm)
  • Product Type
    Load Center
  • Depth
    3.74 in (95 mm)
  • Marketing Trade Name
    QO
  • Max Short Circuit Current Rating
    22 kA
  • Maximum Number Of Single Pole Circuits
    53
  • Number Of Phases
    1 phase
  • Rated Current
    100 A
  • Number Of Spaces
    32
  • Voltage Rating
    240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CQO132M100PC on Powermatic Associates is $670.00. Order now.
