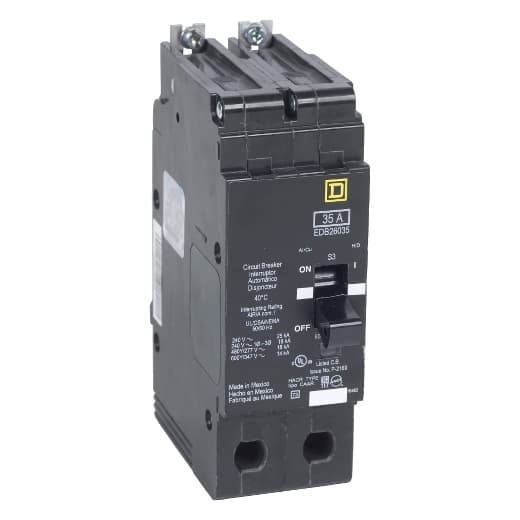

EDB26050 Schneider Electric Electronic Components

EDB26050 on Powermatic Associates
Schneider Electric

Part#:EDB26050

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

Square D by Schneider Electric EDB26050 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 600 V AC. This MCB is equipped with protection functions against short-circuit and overload conditions. It serves as an Equipment Protection Device (EPD) and a Branch Circuit Breaker with a breaking capacity code D. The connection is facilitated through aluminium lugs, suitable for a rated current of 50A and accommodates a wire cross-section of 12-2/0AWG. It is a 2 Pole device with a short circuit breaking rating of 14kA at 600Y/347Vac. The thermal-magnetic trip unit has a protection setting with a trip unit rating of 1800A.

Product Details

  • Maximum Operating Voltage
    600Y/347 V AC
  • Holding Current
    630 A
  • Product Destination
    NF panelboard
  • Module Type
    E-Frame
  • Local Signalling
    Trip indicator
  • Width
    1.96 in (49.78 mm)
  • Number Of Spaces Required
    2
  • Number Of Poles
    2
  • Depth
    4.05 in (102.87 mm)
  • Line Rated Current
    50 A
  • Breaking Capacity
    14 kA 600Y/347 V AC
  • Device Short Name
    EDB
  • Electrical Connection
    Lugs aluminium
  • Trip Unit Technology
    Thermal-magnetic
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Number Of Spaces
    2
  • Net Weight
    3 lb(US) (1.36 kg)
  • Product Or Component Type
    Miniature circuit-breaker
  • Mounting Mode
    Bolt-on
  • Breaking Capacity Code
    D
  • Trip Unit Rating
    1800 A
  • Circuit Breaker Application
    HACR rated
  • Height
    5.66 in (143.76 mm)
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Protection Type
    Overload Short-circuit
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EDB26050 on Powermatic Associates is $536.00. Order now.

EDB26050 Related Documents

Product Datasheet-1631034913134.pdfInstruction Sheet-1631034913142.pdf

Similar products from: Schneider Electric Electronic Components

QOB330GFI5237 on Powermatic Associates

QOB330GFI5237

Schneider Electric

Square D by Schneider Electric QOB330GFI5237 is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 30A and a bolt-on connection type. This MCB operates at a rated voltage of 208 V AC and accommodates a wire cross-section of 14-8AWG for one copper cable. It is a 3 Pole device with a residual current sensitivity of 6mA / 0.006. The QOB330GFI5237 offers ground fault protection and has a short circuit breaking rating of 10kA at both 120Vac and 208Vac. It is equipped with ring tongue type terminals.

6 in stock
LC1F225L7 on Powermatic Associates

LC1F225L7

Schneider Electric

Schneider Electric LC1F225L7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections. The contactor is rated for currents of 315A under AC-1 conditions and 225A at 440Vac under AC-3 conditions. It operates with a control voltage range of 177-228Vac (208Vac nominal; 40-400Hz; 0.85...1.1 x Uc) and has a rated operating voltage (Ue) of 1000 V. This model comes without normally open (NO) or normally closed (NC) auxiliary contacts. It is capable of handling rated impulse voltages (Uimp) up to 8 kV and supports rated active power (kW) of 63kW at 220-230Vac, 110kW at 380-400Vac, 415Vac, and 440Vac, 129kW at 500Vac and 660-690Vac, and 100kW at 1000Vac, all under AC-3 conditions. The LC1F225L7 boasts a mechanical durability of 10 million operations at no load and is designed for phase-to-phase rated voltages (AC) up to 1000 V.

1 in stock
H361 on Powermatic Associates

H361

Schneider Electric

Schneider Electric H361 is a switch-disconnector that falls under the Safety Switches (Heavy Duty) sub-range, specifically designed as a General Duty Single Throw Safety Switch (Fused). It features 3 poles and is rated for a current of 30 A. The dimensions of this part are a net height of 371 mm, a net width of 165 mm, and a net depth of 124 mm. It operates via a toggle mechanism. The H361 has a short circuit breaking rating of 10kA maximum with fuse types H or K and can reach up to 200kA maximum with fuse types R, J, or L. It is equipped with lug type terminals and is designed to handle a rated voltage (AC) of 600 V phase-to-phase.

0 in stock
M9U31110 on Powermatic Associates

M9U31110

Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads, falling under the C60H-DC sub-range. It features a single pole configuration and is rated for a current of 10A with a maximum voltage capacity of 500Vdc. This MCB is compliant with UL1077 standards, ensuring its suitability for a variety of applications. It offers a short circuit breaking rating of 5kA AIR at 250Vdc. The M9U31110 is equipped with a D tripping curve, ensuring precise protection for connected circuits by targeting the specific characteristics of DC loads.

1 in stock
BJF36035 on Powermatic Associates

BJF36035

Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BJF sub-range. It features a PowerPact B-Frame 100 TMD 3P-3t design, with a rated current of 35A and a rated voltage of 600Vac 600Y/347Vac. The breaker is designed for a fixed busbar connection with a term. nut kit on both line and load sides, offering a degree of protection of IP40. It has a mechanical durability of 15,000 operations and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) device has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It operates within Utilisation category A and has protection settings for over-current fixed at 35A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated impulse voltage (Uimp) is 8 kV, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 690 V. It provides thermal and magnetic protection functions, with a trip current rating of 35 AT and an electrical durability of 10,000 operations at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mode. The short circuit breaking rating varies by voltage, with 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Y/347Vac, and 50kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

7 in stock
QOB315EPD5237 on Powermatic Associates

QOB315EPD5237

Schneider Electric

Square D by Schneider Electric QOB315EPD5237 is a Miniature Circuit Breaker (MCB) designed with Equipment Protection Device (EPD) functionality, offering ground fault protection. This bolt-on mounted MCB operates with a rated current of 15A and a connection type that also utilizes a bolt-on mechanism. It is designed for use with a rated voltage (AC) of 240 V and can accommodate a wire cross-section of 14-8AWG (1 cable Cu). The QOB315EPD5237 features 3 poles and has a residual current sensitivity of 30mA / 0.03. Its protection functions include ground fault protection, and it has a short circuit breaking rating of 10kA at 240Vac. The type of terminals used in this MCB is ring tongue.

1 in stock

Manufacturer warranty

EDB26050 Schneider Electric

$536.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$536.00

$536.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare EDB26050 with other Electronic Components products

Maximum Operating Voltage

Holding Current

Product Destination

Module Type

Local Signalling

Width

Number Of Spaces Required

Number Of Poles

Depth

Line Rated Current

Selected product

EDB26050
Backordered
EDB26050
Schneider Electric

Square D by Schneider Electric EDB26050 is a Miniature Circuit Breaker (MCB) designed for bolt-on mo...

Maximum Operating Voltage600Y/347 V AC

Holding Current630 A

Product DestinationNF panelboard

Module TypeE-Frame

Local SignallingTrip indicator

Width1.96 in (49.78 mm)

Number Of Spaces Required2

Number Of Poles2

Depth4.05 in (102.87 mm)

Line Rated Current50 A

BJF36035
7 in stock
BJF36035
Schneider Electric

Square D by Schneider Electric BJF36035 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Maximum Operating Voltage-

Holding Current-

Product Destination-

Module Type-

Local Signallingfor presence of auxiliary co...

Width-

Number Of Spaces Required-

Number Of Poles-

Depth-

Line Rated Current35 A

M9U31110
1 in stock
M9U31110
Schneider Electric

Schneider Electric M9U31110 is a Miniature Circuit Breaker (MCB) designed specifically for DC loads,...

Maximum Operating Voltage-

Holding Current-

Product Destination-

Module Type-

Local SignallingON/OFF indication

Width-

Number Of Spaces Required-

Number Of Poles-

Depth-

Line Rated Current10 A 77 °F (25 °C) EN/IEC 60...

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

LGF36600U31XAAUOYH1 on Powermatic Associates

LGF36600U31XAAUOYH1

Schneider Electric

Square D by Schneider Electric LGF36600U31XAAUOYH1 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT LGF sub-range. It features a factory-installed 24Vdc undervoltage (U/V) trip release coil and a factory-installed 1A/1B (1NO+1NC) auxiliary switch OF wire harness. Designed for PowerPacT L-Frame 600 Micrologic 3.3 (LI), this 3-pole (3P) circuit breaker is rated for 600A and 600Vac, with a busbar rating of 80% and an 18kA busbar. It offers long-time (L) and instantaneous (I) protection functions, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 382 mm, width of 153 mm, and depth of 171 mm. It has an IP40 degree of protection and operates manually via a toggle. Protection settings include L - Protection against overload adjustable from 0.3 to 1 x In (50A to 150A) and I - Instantaneous protection against short-circuit adjustable from 1.5 to 11 x In (900A to 6600A). The control voltage (AC) specification indicates that the circuit breaker opens instantaneously when the undervoltage trip supply voltage drops between 35% and 70% of its rated control voltage, allowing closing when the supply voltage reaches 85% of rated control voltage. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 600 AT, with a frame current rating of 600 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Vac, 18kA at 600Y/347Vac, and 20kA at 500Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.3 (LI) with LI protection and no display, categorized under utilisation category A.

5 in stock

Relevant products

EDB24070SA on Powermatic Associates

EDB24070SA

Verified stock: 0

Square D by Schneider Electric EDB24070SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB serves as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, offering short-circuit and overload protection with a breaking capacity code D. It utilizes an aluminium lugs connection and supports a rated current of 70A across 2 poles. The cross-section compatibility ranges from 12 to 2/0 AWG. Its short circuit breaking rating is specified at 25kA for 120Vac and 240Vac, and 18kA for 480Y/277Vac. The EDB24070SA employs a thermal-magnetic trip unit with protection settings at a trip unit rating of 1800A.

Schneider Electric

EDB24015SA on Powermatic Associates

EDB24015SA

Verified stock: 0

Square D by Schneider Electric EDB24015SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB provides short-circuit and overload protection and serves as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, having a breaking capacity code D. It offers an aluminium lugs connection and supports a rated current of 15A across 2 poles. The cross-section compatibility is 14-6AWG for one copper cable. It has a short circuit breaking rating of 25kA at 120Vac and 240Vac, and 18kA at 480Y/277Vac. The trip unit is of the thermal-magnetic type with protection settings featuring a trip unit rating of 875A.

Schneider Electric

EDB24020LH on Powermatic Associates
