Part#:EJB34015SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

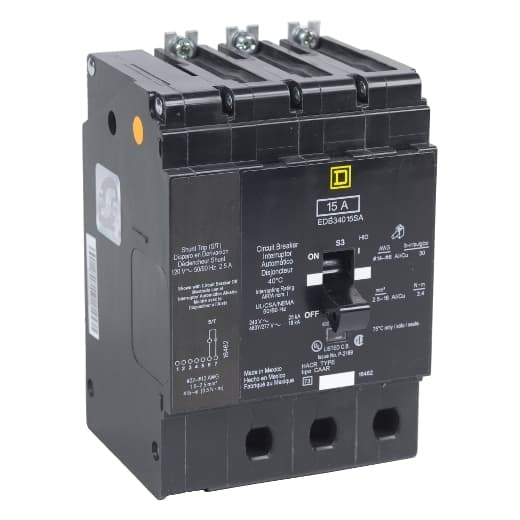

Square D by Schneider Electric EJB34015SA is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB provides short-circuit and overload protection, functioning as an Equipment Protection Device (EPD) and Circuit Breaker (CB) with a shunt trip coil, having a breaking capacity code J. It offers an aluminium lugs connection and supports a rated current of 15A across 3 poles. The cross-section compatibility is 14-6AWG for one copper cable. It has a short circuit breaking rating of 100kA at 120Vac and 240Vac, and 65kA at 480Y/277Vac. The trip unit is thermal-magnetic with protection settings at a trip unit rating of 875A.

Product Details

  • Trip Unit Rating
    875 A
  • Device Composition
    Shunt trip
  • Product Or Component Type
    Miniature circuit-breaker
  • Number Of Spaces Required
    4
  • Holding Current
    270 A
  • Height
    5.66 in (143.76 mm)
  • Maximum Operating Voltage
    480Y/277 V AC
  • Product Destination
    NF panelboard
  • Module Type
    E-Frame
  • Electrical Connection
    Lugs aluminium
  • Local Signalling
    Trip indicator
  • Breaking Capacity Code
    J
  • Width
    3.92 in (99.57 mm)
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Number Of Spaces
    4
  • Mounting Mode
    Bolt-on
  • Tightening Torque
    30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
  • Line Rated Current
    15 A
  • Device Short Name
    EJB
  • Net Weight
    4 lb(US) (1.81 kg)
  • Depth
    4.05 in (102.87 mm)
  • Number Of Poles
    3
  • Trip Unit Technology
    Thermal-magnetic
  • Protection Type
    Short-circuit Overload
  • AWG Gauge
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Circuit Breaker Application
    HID rated HACR rated
  • Breaking Capacity
    65 kA 277 V AC 100 kA 240 V AC 65 kA 480Y/277 V AC 100 kA 120 V AC 100 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EJB34015SA on Powermatic Associates is $2,113.00. Order now.
