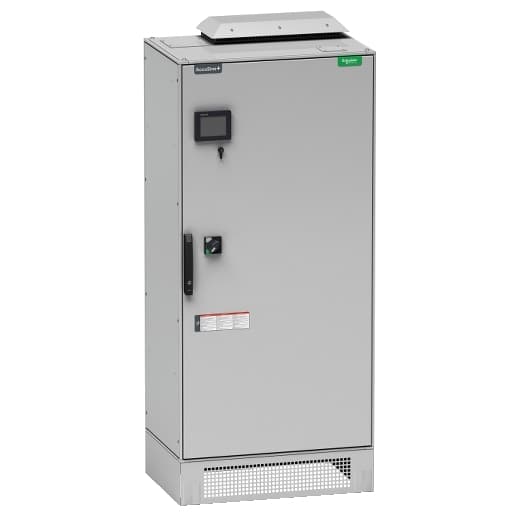

EVCP300D5IP31 Schneider Electric Electronic Components

EVCP300D5IP31 on Powermatic Associates
Schneider Electric

Part#:EVCP300D5IP31

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

FR catalog.xlsx - SM-618

Product Details

  • Reactive Power Rating
    249 kvar 480 V AC 50/60 Hz
  • Location Of Connection
    Top or bottom
  • Product Name
    AccuSine PFV+
  • Disconnect Type
    Door-interlocked with rotary handle
  • Network Configuration
    3 or 4 wires
  • Protection Type
    Circuit breaker protection
  • Product Or Component Type
    Electronic VAR controller
  • Heat Dissipation
    Rear plenum with forced ventilation for high heat flow
  • Range Of Product
    AccuSine
  • RMS Output Current Rating
    300 A
  • Accessibility For Operation
    Front
  • Maximum Permissible Voltage
    1.1 x Un
  • Electromagnetic Compatibility
    Conducted EMC, class A conforming to EN 61000-6-4
  • Input Frequency
    50/60 Hz +/- 3 % auto-sensing
  • Interrupt Capacity
    200 kA
  • Network Type
    3P
  • Enclosure Mounting
    Floor-standing
  • Network Rated Voltage
    380…480 V AC
  • Installation Location
    Indoor
  • Operating Mode
    Mains current balancing Volt-var support Power factor correction

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EVCP300D5IP31 on Powermatic Associates is $176,056.53. Order now.
